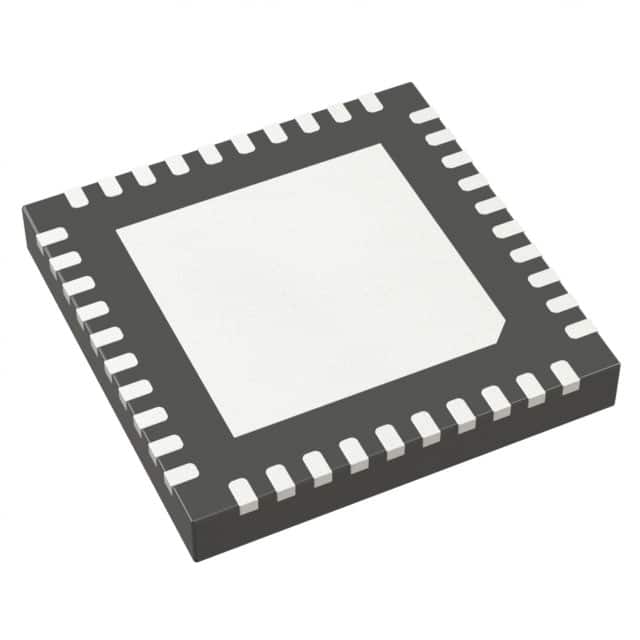

AD5753BCPZ-RL7
1 CHANNEL, 16-BIT +/-4-TO-20 MAManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
16 Bit Digital to Analog Converter 1 40-LFCSP-VQ (6x6)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 40-VFQFN Exposed Pad, CSP |
| Output Type | Voltage - Buffered, Current - Unbuffered |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Data Interface | SPI, DSP |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 115°C |
| Voltage - Supply, Analog | -30V ~ 0V, 5V ~ 33V |
| Voltage - Supply, Digital | - |
| Settling Time | 20µs |
| Supplier Device Package | 40-LFCSP-VQ (6x6) |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±0.006, ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
Request a Quote
