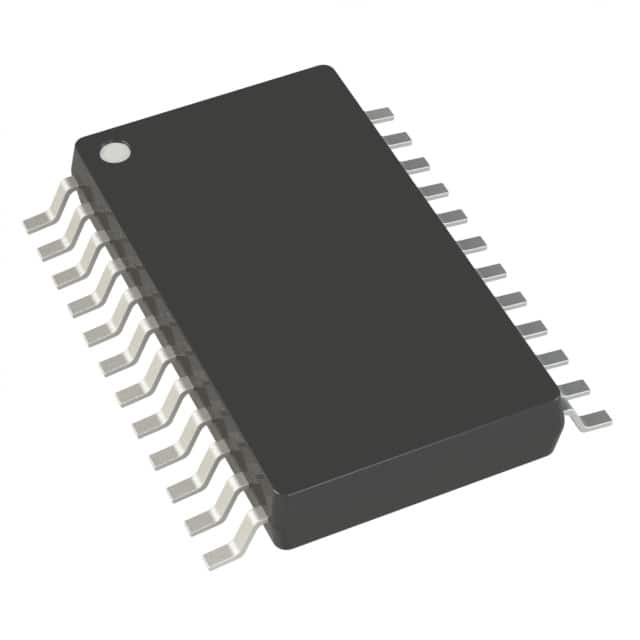

AD5732RBREZ-REEL7
IC DAC 14BIT V-OUT 24TSSOPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. iCMOS® series AD5732RBREZ-REEL7 is a dual 14-bit, voltage-output digital-to-analog converter (DAC). This device features an SPI and DSP compatible serial interface and a string DAC architecture. It offers a buffered voltage output with a settling time of 12µs. The AD5732RBREZ-REEL7 supports external or internal voltage references and operates from analog supply voltages of ±4.5V to ±16.5V and digital supply voltages from 2.7V to 5.5V. Integral and differential linearity are specified at ±4 LSB maximum. This component is supplied in a 24-TSSOP-EP package for surface mounting, delivered on tape and reel. Applications for this device are found in industrial automation, test and measurement equipment, and medical instrumentation.
Additional Information
Series: iCMOS®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-TSSOP (0.173"", 4.40mm Width) Exposed Pad |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Data Interface | SPI, DSP |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | ±4.5V ~ 16.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Settling Time | 12µs |
| Supplier Device Package | 24-TSSOP-EP |
| Architecture | String DAC |
| Number of D/A Converters | 2 |
| INL/DNL (LSB) | ±4 (Max), ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
