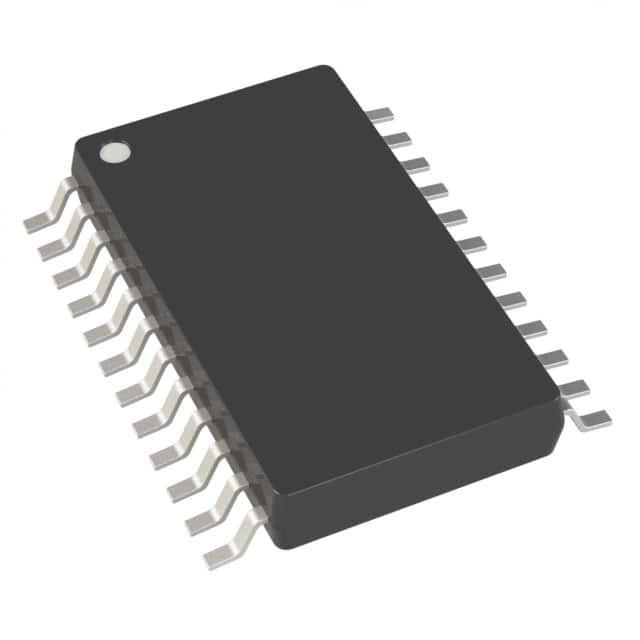

AD5732AREZ-REEL7
IC DAC 14BIT V-OUT 24TSSOPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. AD5732AREZ-REEL7 is a dual, 14-bit, voltage-output digital-to-analog converter (DAC) from the iCMOS® series. This device features a String DAC architecture and supports SPI and DSP data interfaces. It offers precise conversion with a maximum Integral Non-Linearity (INL) and Differential Non-Linearity (DNL) of ±4 LSB. The AD5732AREZ-REEL7 has a voltage output that is buffered and requires an external reference. It boasts a settling time of 12µs. This component is designed for surface mount applications and is supplied in a 24-TSSOP-EP package on a tape and reel. It operates within an analog supply voltage range of ±4.5V to ±16.5V and a digital supply voltage range of 2.7V to 5.5V, with an operating temperature range of -40°C to 85°C. Applications for this DAC include industrial process control, instrumentation, and automated test equipment.
Additional Information
Series: iCMOS®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-TSSOP (0.173"", 4.40mm Width) Exposed Pad |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Data Interface | SPI, DSP |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | ±4.5V ~ 16.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Settling Time | 12µs |
| Supplier Device Package | 24-TSSOP-EP |
| Architecture | String DAC |
| Number of D/A Converters | 2 |
| INL/DNL (LSB) | ±4 (Max), ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
