AD569KN

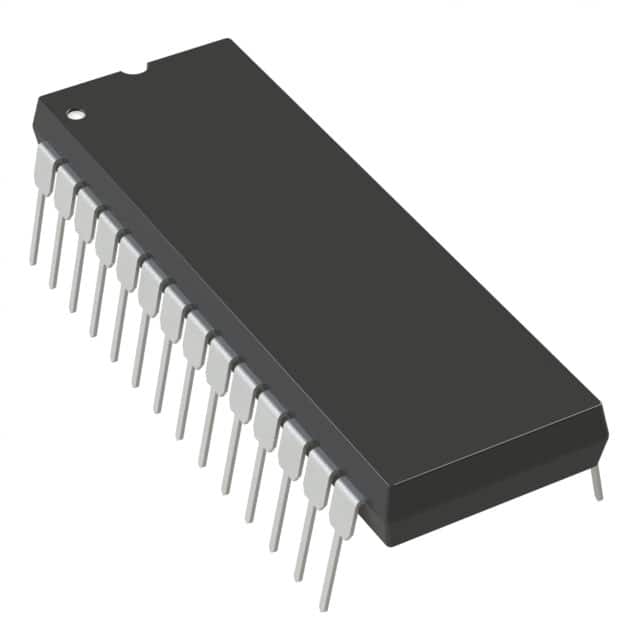

IC DAC 16BIT V-OUT 28DIPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. AD569KN is a 16-bit, single-channel voltage-output digital-to-analog converter (DAC). This component features a segmented architecture and a parallel data interface. The AD569KN offers a low integral nonlinearity (INL) of ±0.020 LSB and a differential nonlinearity (DNL) of ±0.5 LSB. It requires an external voltage reference and provides a buffered voltage output. The settling time for a full-scale step is a rapid 6µs. This device operates over a temperature range of 0°C to 70°C and is supplied in a 28-lead DIP (0.600", 15.24mm) package suitable for through-hole mounting. Analog supply voltage can range from ±10.8V to ±13.2V. The AD569KN is utilized in applications such as industrial control systems, test and measurement equipment, and medical instrumentation.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-DIP (0.600"", 15.24mm) |
| Output Type | Voltage - Buffered |
| Mounting Type | Through Hole |
| Number of Bits | 16 |
| Data Interface | Parallel |
| Reference Type | External |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | ±10.8V ~ 13.2V |
| Voltage - Supply, Digital | - |
| Settling Time | 6µs |
| Supplier Device Package | 28-PDIP |
| Architecture | Segmented DAC |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±0.020, ±0.5 |
| Differential Output | No |
| Programmable | Not Verified |
