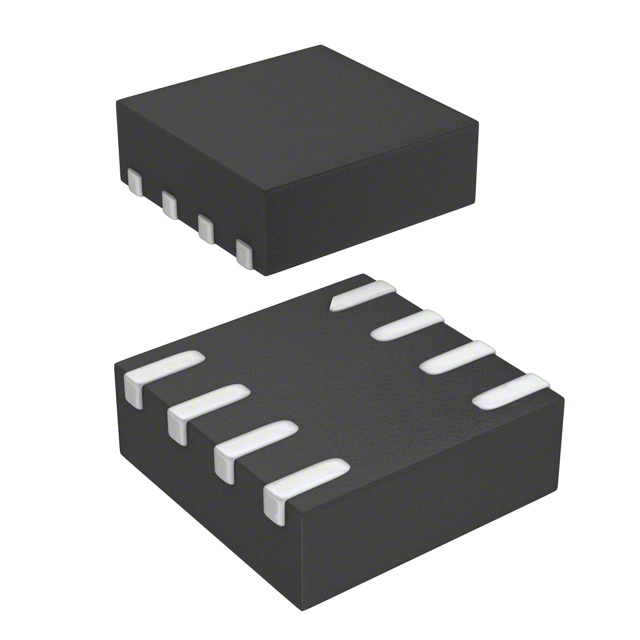

AD5680BCPZ-1RL7
IC DAC 18BIT V-OUT 8LFCSP-WDManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
18 Bit Digital to Analog Converter 1 8-LFCSP-WD (3x3)
Additional Information
Series: nanoDAC®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-WDFN, CSP |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 18 |
| Data Interface | SPI, DSP |
| Reference Type | External |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Settling Time | 85µs |
| Supplier Device Package | 8-LFCSP-WD (3x3) |
| Architecture | String DAC |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±32, ±2 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
Request a Quote
