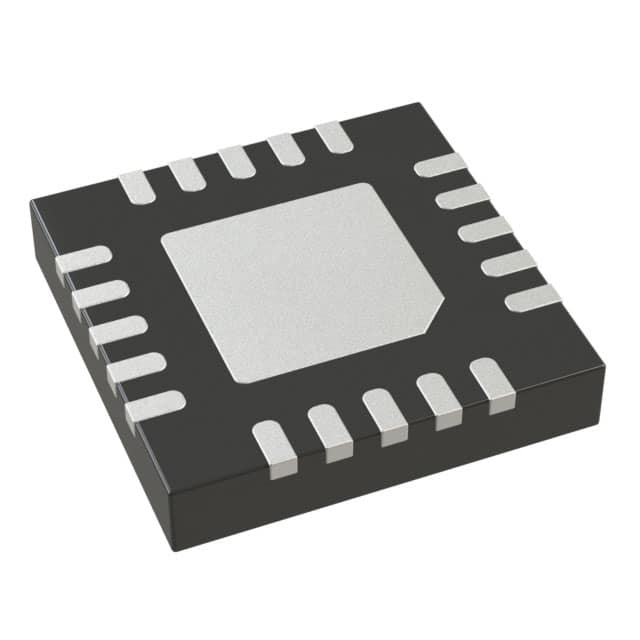

AD5676ACPZ-RL
IC DAC 16BIT V-OUT 20LFCSPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. nanoDAC+® series 16-bit, octal, voltage-output digital-to-analog converter (DAC). The AD5676ACPZ-RL features a 20-LFCSP (4x4) exposed pad package for surface mounting and operates from a 2.7V to 5.5V analog supply and 1.8V to 5.5V digital supply. This string DAC offers a guaranteed monotonic performance with ±1.8 LSB INL and ±0.7 LSB DNL. The device supports SPI and DSP data interfaces, providing a buffered voltage output. Its fast settling time of 8µs makes it suitable for applications requiring rapid response. The AD5676ACPZ-RL is commonly utilized in industrial automation, test and measurement, and medical devices. It is supplied in tape and reel packaging.
Additional Information
Series: nanoDAC+®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-WFQFN Exposed Pad, CSP |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Data Interface | SPI, DSP |
| Reference Type | External |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 1.8V ~ 5.5V |
| Settling Time | 8µs |
| Supplier Device Package | 20-LFCSP (4x4) |
| Architecture | String DAC |
| Number of D/A Converters | 8 |
| INL/DNL (LSB) | ±1.8, ±0.7 |
| Differential Output | No |
| Programmable | Not Verified |
