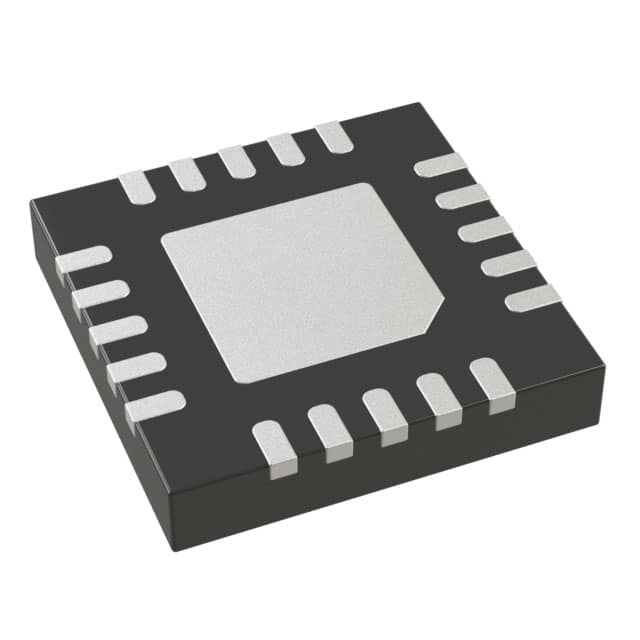

AD5675ACPZ-RL
IC DAC 16BIT V-OUT 20LFCSPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. nanoDAC+® AD5675ACPZ-RL is a high-precision, 16-bit, 8-channel digital-to-analog converter (DAC) designed for demanding applications. This device features an I2C interface for efficient data communication and offers a buffered voltage output. With a low static current and a wide analog supply range of 2.7V to 5.5V, it is suitable for power-sensitive designs. The integral and differential linearity specifications of ±1.8 LSB and ±0.7 LSB respectively ensure excellent conversion accuracy. The 20-LFCSP (4x4) package with exposed pad facilitates effective thermal management. Applications span industrial automation, medical instrumentation, and consumer electronics. The AD5675ACPZ-RL is supplied in a tape and reel for automated assembly.
Additional Information
Series: nanoDAC+®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-WFQFN Exposed Pad, CSP |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Data Interface | I2C |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 1.8V ~ 5.5V |
| Settling Time | 8µs |
| Supplier Device Package | 20-LFCSP (4x4) |
| Architecture | String DAC |
| Number of D/A Converters | 8 |
| INL/DNL (LSB) | ±1.8, ±0.7 |
| Differential Output | No |
| Programmable | Not Verified |
