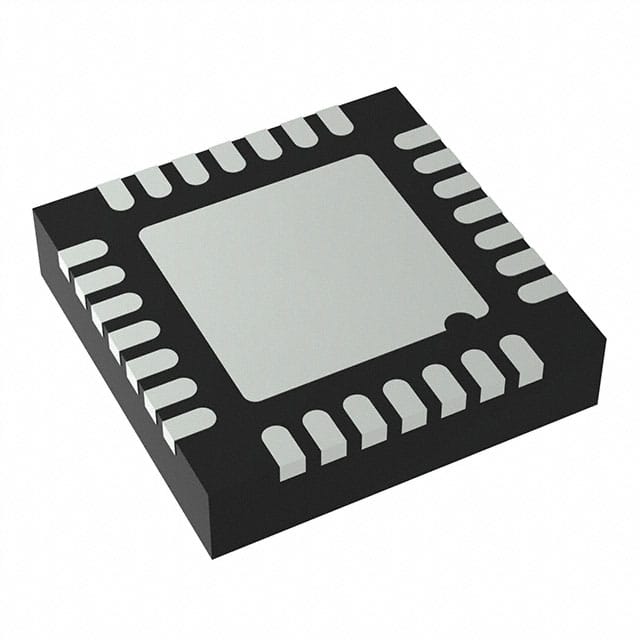

AD5674BCPZ-1
16-CH12-BITNANODAC+WITH2PPM/CREFManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
12 Bit Digital to Analog Converter 16 28-LFCSP (4x4)
Additional Information
Series: nanoDAC+®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 28-VFQFN Exposed Pad, CSP |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Data Interface | SPI, DSP |
| Reference Type | External |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 1.8V ~ 5.5V |
| Settling Time | 8µs |
| Supplier Device Package | 28-LFCSP (4x4) |
| Architecture | String DAC |
| Number of D/A Converters | 16 |
| INL/DNL (LSB) | ±1.8, ±0.7 |
| Differential Output | No |
| Programmable | Not Verified |
Request a Quote
