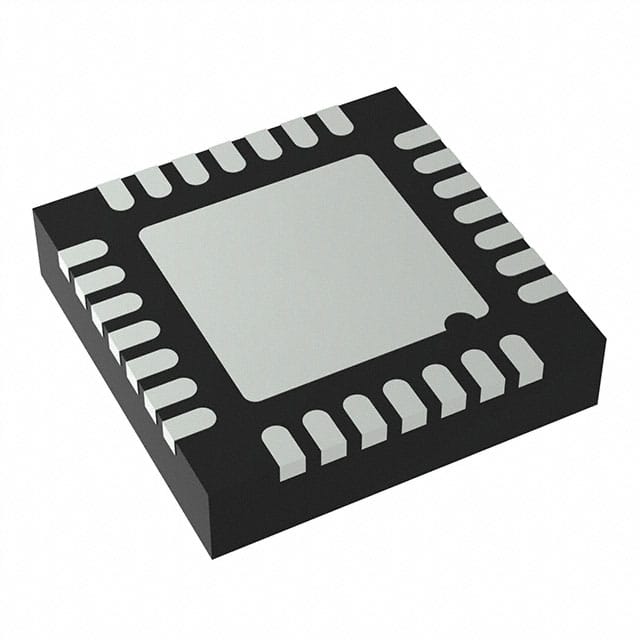

AD5673RBCPZ-2-RL7
IC DAC 12BIT V-OUT 28LFCSPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. AD5673RBCPZ-2-RL7 is a 12-bit, 16-channel Digital to Analog Converter (DAC) featuring a voltage output. This component utilizes a string DAC architecture and communicates via an I2C interface. The device offers an internal voltage reference, and its output is voltage-buffered. Specified with a typical INL/DNL of ±0.12 LSB and ±0.05 LSB, respectively, it achieves a settling time of 8µs. The AD5673RBCPZ-2-RL7 operates over an analog and digital supply voltage range of 2.7V to 5.5V and is qualified for operation from -40°C to 125°C. It is supplied in a 28-LFCSP (4x4) package, mounted via surface mount. This DAC is suitable for applications in industrial control, data acquisition systems, and medical instrumentation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-VFQFN Exposed Pad, CSP |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Data Interface | I2C |
| Reference Type | Internal |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Settling Time | 8µs |
| Supplier Device Package | 28-LFCSP (4x4) |
| Architecture | String DAC |
| Number of D/A Converters | 16 |
| INL/DNL (LSB) | ±0.12LSB, ±0.05LSB |
| Differential Output | No |
| Programmable | Not Verified |
