AD5673RBCPZ-2
IC DAC 12BIT V-OUT 28LFCSPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. AD5673RBCPZ-2 is a 12-bit, 16-channel, current-output digital-to-analog converter (DAC) featuring a string DAC architecture. This device supports an I2C data interface and offers a buffered voltage output. The AD5673RBCPZ-2 operates over an analog and digital supply voltage range of 2.7V to 5.5V and is specified for operation within an extended temperature range of -40°C to 125°C. Key performance specifications include integral nonlinearity (INL) and differential nonlinearity (DNL) of ±0.12 LSB and ±0.05 LSB, respectively, with a settling time of 8µs. The component is housed in a 28-LFCSP (4x4) package. This DAC is commonly utilized in industrial automation, medical instrumentation, and communication systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |

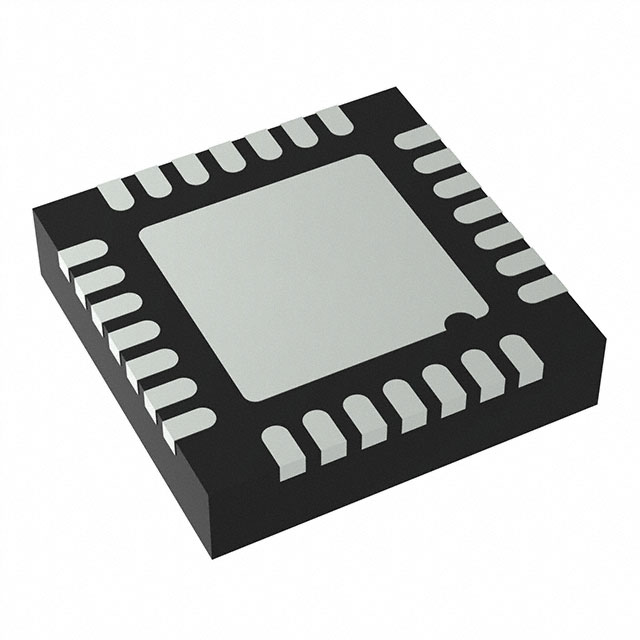

| Package / Case | 28-VFQFN Exposed Pad, CSP |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Data Interface | I2C |
| Reference Type | Internal |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Settling Time | 8µs |
| Supplier Device Package | 28-LFCSP (4x4) |
| Architecture | String DAC |
| Number of D/A Converters | 16 |
| INL/DNL (LSB) | ±0.12LSB, ±0.05LSB |
| Differential Output | No |
| Programmable | Not Verified |
