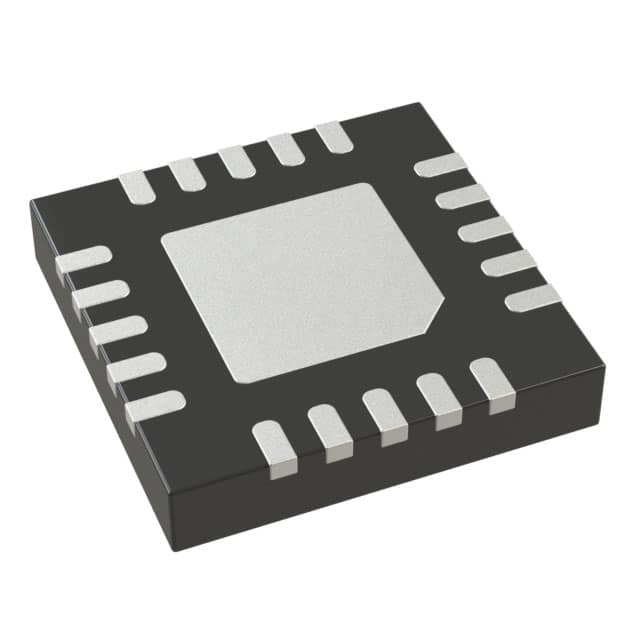

AD5671RBCPZ-RL
IC DAC 12BIT V-OUT 20LFCSPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. AD5671RBCPZ-RL is an 8-channel, 12-bit nanoDAC+® series digital-to-analog converter. This device features an I2C interface for data communication and an internal voltage reference. The output type is voltage, buffered, with a specified settling time of 8µs. The AD5671RBCPZ-RL offers excellent linearity, with typical INL/DNL specifications of ±0.12 LSB and ±0.01 LSB, respectively. It operates over an analog supply voltage range of 2.7V to 5.5V and a digital supply voltage range of 1.8V to 5.5V. The component is housed in a 20-LFCSP (4x4) package and is supplied on tape and reel. This device finds application in industrial automation, medical equipment, and consumer electronics.
Additional Information
Series: nanoDAC+®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-WFQFN Exposed Pad, CSP |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Data Interface | I2C |
| Reference Type | Internal |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 1.8V ~ 5.5V |
| Settling Time | 8µs |
| Supplier Device Package | 20-LFCSP (4x4) |
| Architecture | String DAC |
| Number of D/A Converters | 8 |
| INL/DNL (LSB) | ±0.12, ±0.01 |
| Differential Output | No |
| Programmable | Not Verified |
