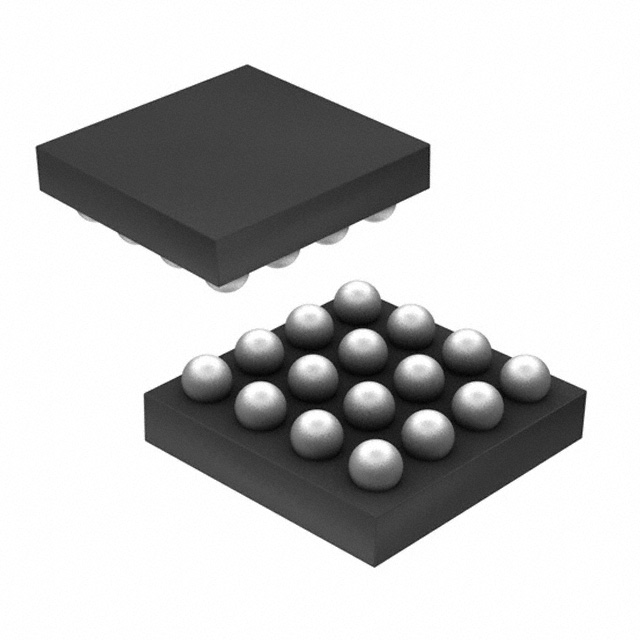

AD5669RBCBZ-1-R5
IC DAC 16BIT V-OUT 16WLCSPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
16 Bit Digital to Analog Converter 8 16-WLCSP (2.61x2.61)
Additional Information
Series: denseDACRoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-UFBGA, WLCSP |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Data Interface | I2C |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V |
| Settling Time | 7µs |
| Supplier Device Package | 16-WLCSP (2.61x2.61) |
| Architecture | String DAC |
| Number of D/A Converters | 8 |
| INL/DNL (LSB) | ±8, ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
