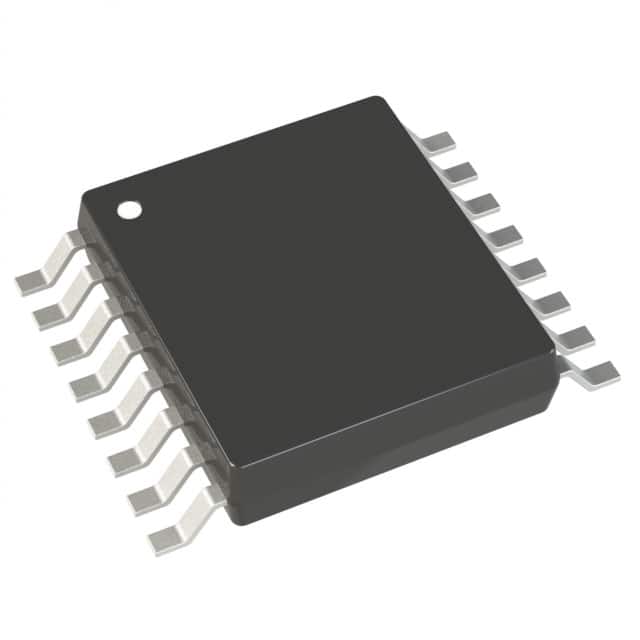

AD5668BRUZ-3
IC DAC 16BIT V-OUT 16TSSOPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
16 Bit Digital to Analog Converter 8 16-TSSOP
Additional Information
Series: denseDACRoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-TSSOP (0.173"", 4.40mm Width) |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Data Interface | SPI, DSP |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Settling Time | 7µs |
| Supplier Device Package | 16-TSSOP |
| Architecture | String DAC |
| Number of D/A Converters | 8 |
| INL/DNL (LSB) | ±8, ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
