AD5641ACPZ-REEL7
IC DAC 14BIT V-OUT 6LFCSPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. AD5641ACPZ-REEL7 is a 14-bit nanoDAC® series digital-to-analog converter. This single DAC, housed in a 6-LFCSP-WD (2x3) package, features a voltage output type that is buffered. The device supports SPI and DSP data interfaces and operates with analog and digital supply voltages ranging from 2.7V to 5.5V. It offers a typical settling time of 10µs and a ±16 LSB maximum INL/DNL specification. The AD5641ACPZ-REEL7 is suitable for applications requiring precise voltage output, including industrial automation, medical instrumentation, and consumer electronics. The component is supplied in a tape and reel package for efficient automated assembly.
Additional Information
Series: nanoDAC®RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

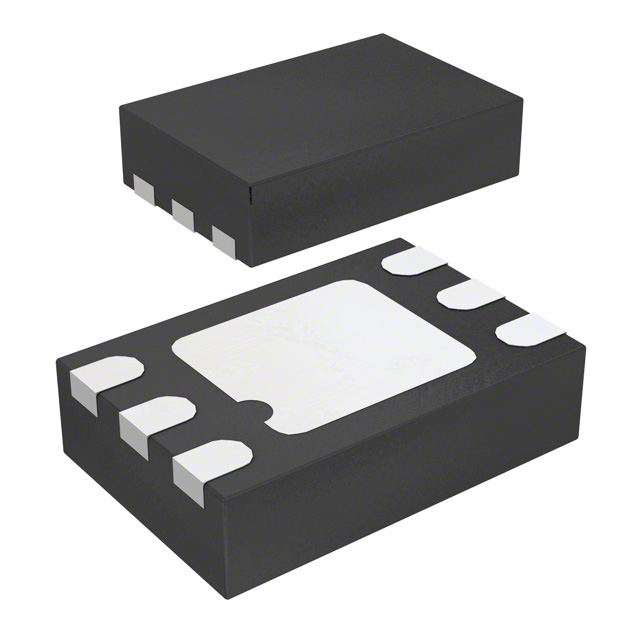

| Package / Case | 6-VDFN Exposed Pad, CSP |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Data Interface | SPI, DSP |
| Reference Type | Supply |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Settling Time | 10µs |
| Supplier Device Package | 6-LFCSP-WD (2x3) |
| Architecture | String DAC |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±16 (Max), ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
