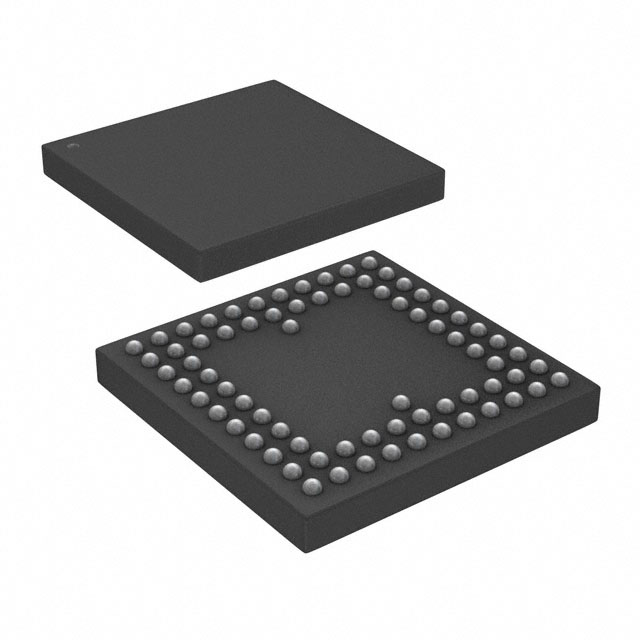

AD5516ABC-1
IC DAC 12BIT V-OUT 74CSPBGAManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. AD5516ABC-1 is a 12-bit, 16-channel voltage-output digital-to-analog converter. This device features a string DAC architecture and accepts data via SPI and DSP interfaces. The AD5516ABC-1 offers a voltage output and has a typical INL/DNL specification of ±0.5 LSB, with a maximum of ±2 LSB. Settling time is rated at 32µs. It operates from an analog supply voltage range of ±4.75V to ±15.75V or 5V, and a digital supply voltage range of 2.7V to 5.25V. The device supports an external voltage reference. This surface mount component is supplied in a 74-CSPBGA (12x12) package and is suitable for applications in industrial automation, test and measurement equipment, and audio processing systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 74-LBGA, CSPBGA |
| Output Type | Voltage - Unbuffered |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Data Interface | SPI, DSP |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | ±4.75V ~ 15.75V, 5V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Settling Time | 32µs |
| Supplier Device Package | 74-CSPBGA (12x12) |
| Architecture | String DAC |
| Number of D/A Converters | 16 |
| INL/DNL (LSB) | ±2 (Max), ±0.5 |
| Differential Output | No |
| Programmable | Not Verified |
