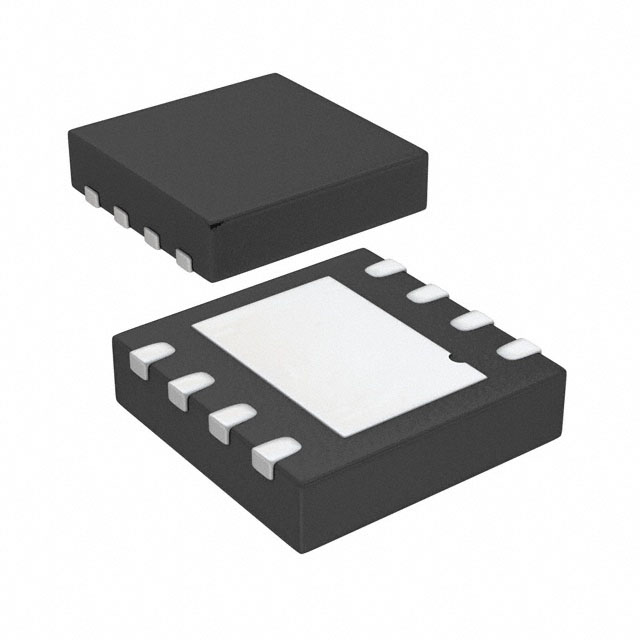

AD5441BCPZ-REEL7

IC DAC 12BIT A-OUT 8LFCSP-WD

Categories: Digital to Analog Converters (DAC)

Quality Control: Learn More

Analog Devices Inc. AD5441BCPZ-REEL7 is a 12-bit, single-channel digital-to-analog converter (DAC). This component utilizes an R-2R architecture and features a serial data interface for efficient communication. The AD5441BCPZ-REEL7 offers a current output type, unbuffered, with a typical settling time of 5µs. It supports analog and digital supply voltages ranging from 2.5V to 5.5V. Integral and differential linearity are specified at ±0.5 LSB maximum. The device is housed in an 8-LFCSP-WD (3x3) package, suitable for surface mounting. Operating temperature range is -40°C to 125°C. This DAC is commonly found in industrial automation, medical instrumentation, and communications infrastructure applications.

Additional Information

Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:

Download Free CAD Model:

Technical Details:

Packaging	Bulk
Package / Case	8-VDFN Exposed Pad, CSP
Output Type	Current - Unbuffered
Mounting Type	Surface Mount
Number of Bits	12
Data Interface	Serial
Reference Type	External
Operating Temperature	-40°C ~ 125°C
Voltage - Supply, Analog	2.5V ~ 5.5V
Voltage - Supply, Digital	2.5V ~ 5.5V
Settling Time	5µs
Supplier Device Package	8-LFCSP-WD (3x3)
Architecture	R-2R
Number of D/A Converters	1
INL/DNL (LSB)	±0.5 (Max), ±0.5 (Max)
Differential Output	No
Programmable	Not Verified
