AD5426YRM-REEL
IC DAC 8BIT A-OUT 10MSOPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. AD5426YRM-REEL is an 8-bit, single-channel digital-to-analog converter (DAC). This component features an R-2R architecture and an SPI/DSP compatible data interface, facilitating seamless integration into various embedded systems. The device offers a current output that is unbuffered, with a settling time of 160ns. It supports external voltage references and operates across a wide analog and digital supply voltage range of 2.5V to 5.5V. Integral and differential linearity are specified at ±0.25 LSB and ±0.5 LSB maximum, respectively. The AD5426YRM-REEL is packaged in a 10-MSOP (10-TFSOP) surface-mount configuration and is supplied on tape and reel. This DAC is suitable for applications in industrial automation, test and measurement equipment, and audio signal processing.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-TFSOP, 10-MSOP (0.118"", 3.00mm Width) |
| Output Type | Current - Unbuffered |
| Mounting Type | Surface Mount |
| Number of Bits | 8 |
| Data Interface | SPI, DSP |
| Reference Type | External |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply, Analog | 2.5V ~ 5.5V |
| Voltage - Supply, Digital | 2.5V ~ 5.5V |
| Settling Time | 160ns |
| Supplier Device Package | 10-MSOP |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±0.25 (Max), ±0.5 (Max) |
| Differential Output | Yes |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy
AD7399BRZ
IC DAC 10BIT V-OUT 16SOIC

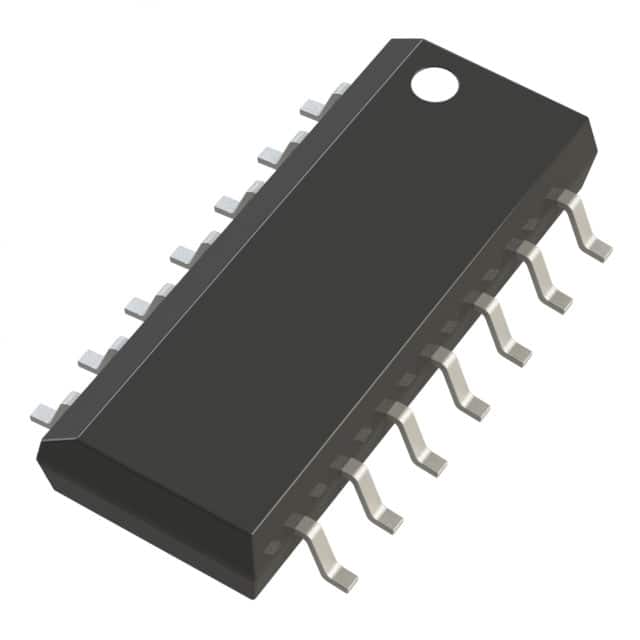

AD5552BRZ
