AD5422BCPZ-REEL

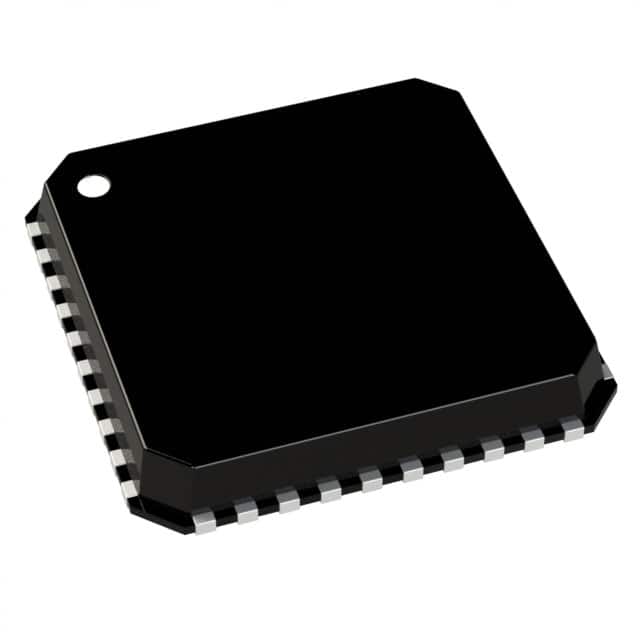

IC DAC 16BIT V OR A-OUT 40LFCSPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. AD5422BCPZ-REEL is a 16-bit, single-channel digital-to-analog converter (DAC) featuring an R-2R architecture. This component supports both voltage and current output modes, with buffered outputs. The data interface utilizes SPI and DSP protocols. The device operates over an extended temperature range of -40°C to 105°C. Key specifications include an INL/DNL of ±1.3 LSB max and a settling time of 25µs for voltage output and 40µs for current output. The analog supply voltage range is 10.8V to 40V and -3V to 26.4V, with a digital supply voltage range of 2.7V to 5.5V. It is packaged in a 40-lead LFCSP_VQ (6x6) and supplied on tape and reel. The AD5422BCPZ-REEL is suitable for applications in industrial automation, medical instrumentation, and test and measurement equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 40-VFQFN Exposed Pad, CSP |
| Output Type | Voltage or Current - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Data Interface | SPI, DSP |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply, Analog | 10.8V ~ 40V, -3V ~ 26.4V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Settling Time | 25µs (V), 40µs (A) (Typ) |
| Supplier Device Package | 40-LFCSP-VQ (6x6) |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | -, ±1.3 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
