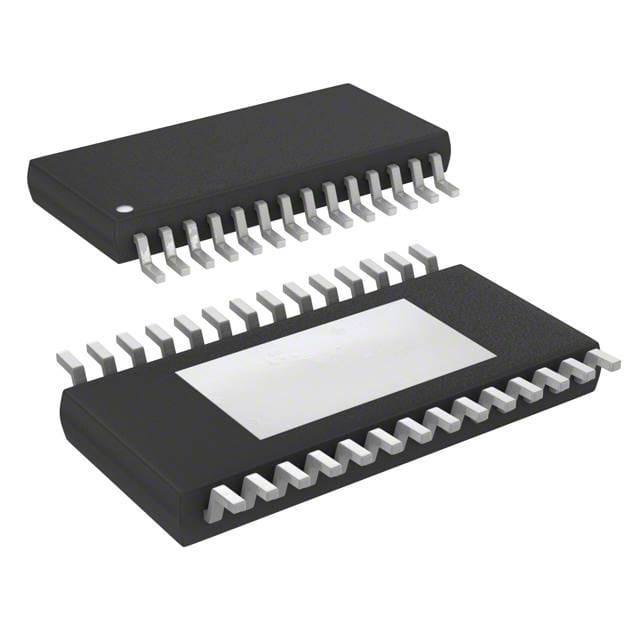

AD5421CREZ
IC DAC 16BIT C-OUT 28TSSOPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
16 Bit Digital to Analog Converter 1 28-TSSOP-EP
Additional Information
Series: AD5421RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-TSSOP (0.173"", 4.40mm Width) Exposed Pad |
| Output Type | Current - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Data Interface | SPI, DSP |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply, Analog | 1.71V ~ 5.5V |
| Voltage - Supply, Digital | 3.17V ~ 3.48V |
| Settling Time | 50µs (Typ) |
| Supplier Device Package | 28-TSSOP-EP |
| Architecture | Cyclic Serial |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | -, ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

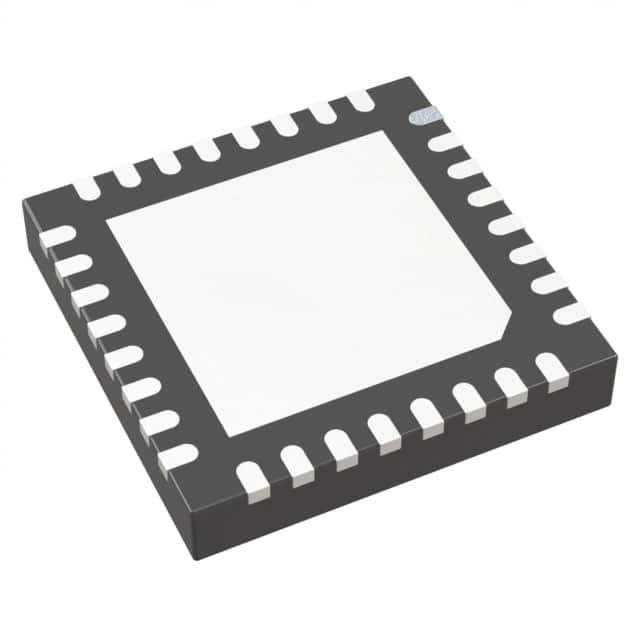

AD5421ACPZ-REEL7
