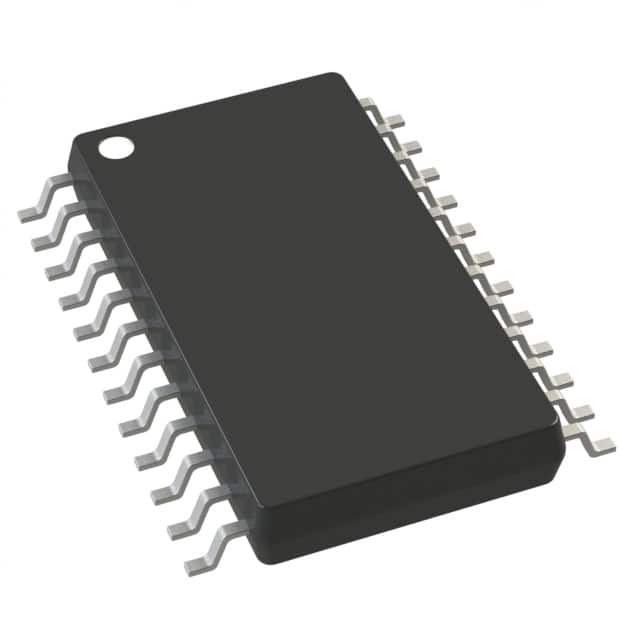

AD5415YRUZ-REEL
IC DAC 12BIT A-OUT 24TSSOPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. AD5415YRUZ-REEL is a dual, 12-bit current output digital-to-analog converter featuring an R-2R architecture. This component supports SPI and DSP compatible data interfaces for flexible system integration. Its differential output capability and unbuffered current output are suitable for applications requiring precise analog signal generation. With a maximum INL/DNL of ±1 LSB and ±1/+2 LSB respectively, the AD5415YRUZ-REEL ensures high accuracy.
Operating across an analog and digital supply voltage range of 2.5V to 5.5V, it functions effectively within an extended temperature range of -40°C to 125°C. The device utilizes an external reference voltage and boasts a settling time of 120ns. Packaged in a 24-TSSOP (0.173", 4.40mm width) for surface mounting and supplied in a tape and reel configuration, this converter is well-suited for use in industrial automation, test and measurement equipment, and medical instrumentation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-TSSOP (0.173"", 4.40mm Width) |
| Output Type | Current - Unbuffered |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Data Interface | SPI, DSP |
| Reference Type | External |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply, Analog | 2.5V ~ 5.5V |
| Voltage - Supply, Digital | 2.5V ~ 5.5V |
| Settling Time | 120ns |
| Supplier Device Package | 24-TSSOP |
| Architecture | R-2R |
| Number of D/A Converters | 2 |
| INL/DNL (LSB) | ±1 (Max), -1/+2 (Max) |
| Differential Output | Yes |
| Programmable | Not Verified |
