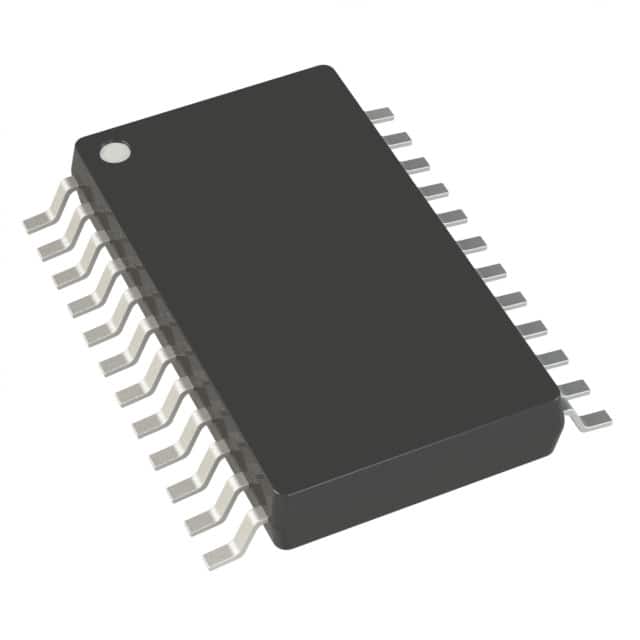

AD5412AREZ-REEL7
IC DAC 12BIT V OR A-OUT 24TSSOPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
12 Bit Digital to Analog Converter 1 24-TSSOP-EP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-TSSOP (0.173"", 4.40mm Width) Exposed Pad |
| Output Type | Voltage or Current - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Data Interface | SPI, DSP |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply, Analog | 10.8V ~ 40V, -3V ~ 26.4V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Settling Time | 25µs (V), 40µs (A) (Typ) |
| Supplier Device Package | 24-TSSOP-EP |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | -, ±1.3 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
Request a Quote
