AD5398A-WAFER
IC DAC 10BIT A-OUT 9WLCSPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. AD5398A-WAFER is a 10-bit, single-channel current output digital-to-analog converter (DAC). This device features an I2C serial interface and an internal voltage reference. The architecture is current sink with unbuffered current output. Designed for surface mount applications, it is supplied in a compact 9-WLCSP (1.52x1.69) package. The AD5398A-WAFER operates across an analog and digital supply voltage range of 2.7V to 5.5V and has an operating temperature range of -30°C to 85°C. Typical settling time is 250µs. This component finds application in areas such as industrial automation, medical equipment, and consumer electronics.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |

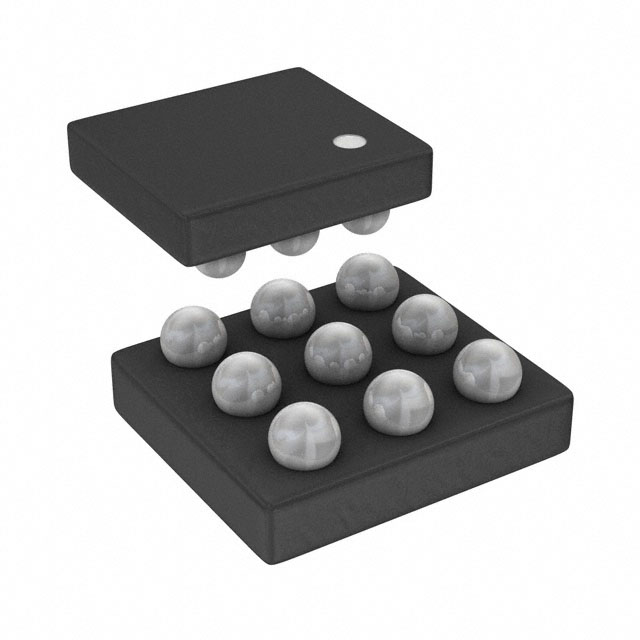

| Package / Case | 9-UFBGA, WLCSP |
| Output Type | Current - Unbuffered |
| Mounting Type | Surface Mount |
| Number of Bits | 10 |
| Data Interface | I2C |
| Reference Type | Internal |
| Operating Temperature | -30°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Settling Time | 250µs (Typ) |
| Supplier Device Package | 9-WLCSP (1.52x1.69) |
| Architecture | Current Sink |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±1.5, ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
