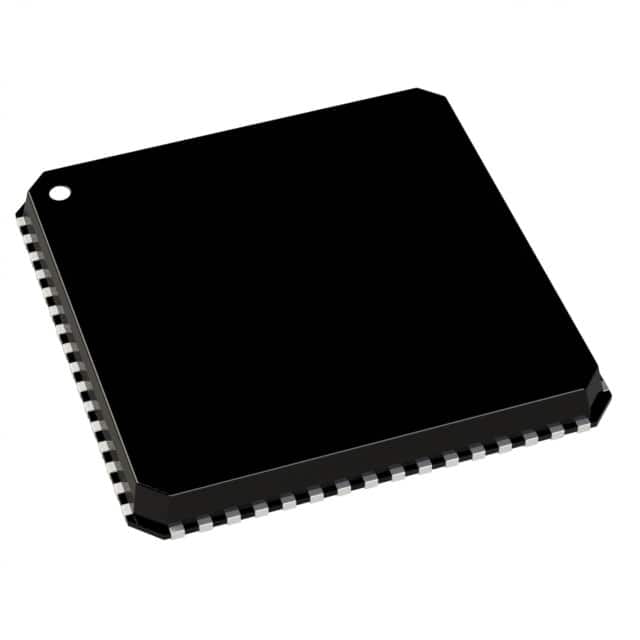

AD5390BCPZ-5
IC DAC 14BIT V-OUT 64LFCSPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
14 Bit Digital to Analog Converter 16 64-LFCSP-VQ (9x9)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 64-VFQFN Exposed Pad, CSP |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Data Interface | I2C, SPI, DSP |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Settling Time | 8µs |
| Supplier Device Package | 64-LFCSP-VQ (9x9) |
| Architecture | String DAC |
| Number of D/A Converters | 16 |
| INL/DNL (LSB) | ±3 (Max), -1/+2 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
Request a Quote
