AD5378ABC

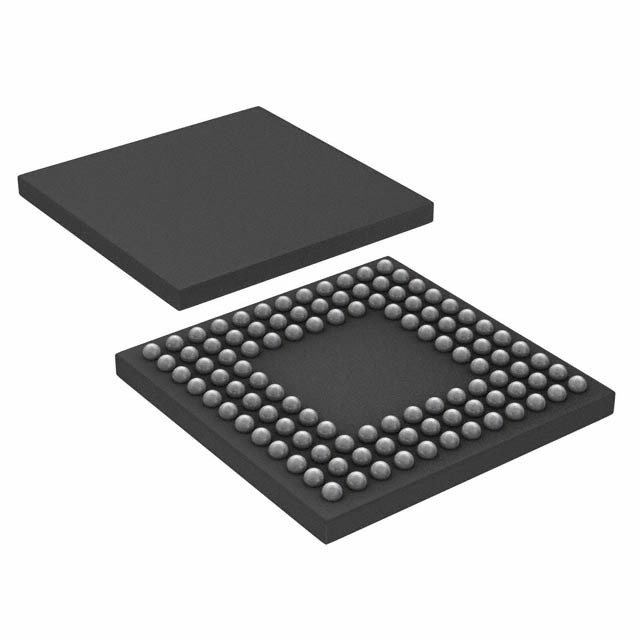

IC DAC 14BIT V-OUT 108CSPBGAManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. AD5378ABC is a 14-bit, 32-channel, voltage-output digital-to-analog converter (DAC). This device utilizes a string DAC architecture, offering a high level of precision with typical Integral Nonlinearity (INL) and Differential Nonlinearity (DNL) of ±3 LSB maximum. The AD5378ABC features an SPI and DSP compatible data interface for flexible integration into system designs. Its 108-CSPBGA (13x13) package is designed for surface-mount applications. The analog supply voltage range is 8.5V to 16.5V and -3V to 16.5V, while the digital supply voltage is 2.7V to 5.5V. This component boasts a settling time of 30µs and requires an external voltage reference. It operates across a temperature range of -40°C to 85°C. Applications for the Analog Devices Inc. AD5378ABC can be found in industrial automation, test and measurement equipment, and medical instrumentation.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 108-BGA, CSPBGA |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Data Interface | SPI, DSP |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 8.5V ~ 16.5V , -3V ~ 16.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Settling Time | 30µs |
| Supplier Device Package | 108-CSPBGA (13x13) |
| Architecture | String DAC |
| Number of D/A Converters | 32 |
| INL/DNL (LSB) | ±3 (Max), -1/+1.5 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
