AD5371BBCZ-REEL
IC DAC 14BIT V-OUT 100CSBGAManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. AD5371BBCZ-REEL is a 40-channel, 14-bit voltage-output DAC. This component features a string DAC architecture and supports SPI and DSP data interfaces. The device offers excellent linearity with a maximum INL/DNL of ±1 LSB. It is supplied in a 100-CSPBGA (10x10) package suitable for surface mounting and comes on a tape and reel. The analog supply voltage range is 9V to 16.5V and -4.5V to 16.5V, while the digital supply voltage is 2.5V to 5.5V. The output is voltage buffered, and an external reference is required. Settling time is rated at 30µs. This DAC is utilized in applications such as industrial automation, test and measurement, and medical equipment.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

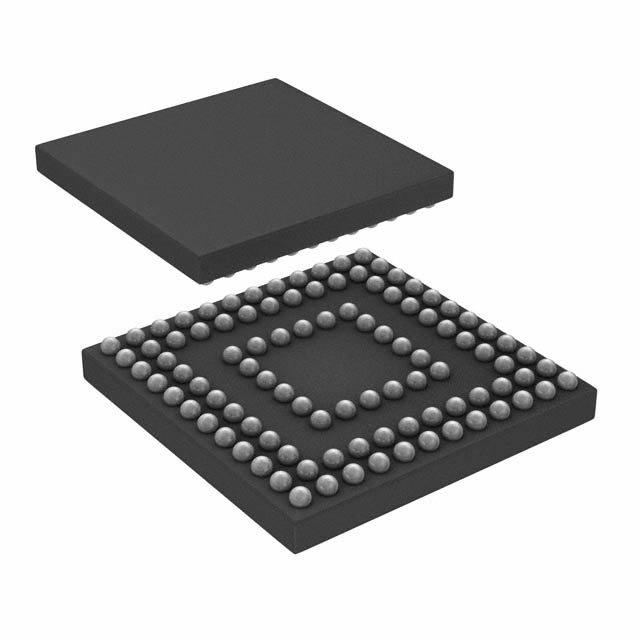

| Package / Case | 100-LFBGA, CSPBGA |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Data Interface | SPI, DSP |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 9V ~ 16.5V, -4.5V ~ 16.5V |
| Voltage - Supply, Digital | 2.5V ~ 5.5V |
| Settling Time | 30µs |
| Supplier Device Package | 100-CSPBGA (10x10) |
| Architecture | String DAC |
| Number of D/A Converters | 40 |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
