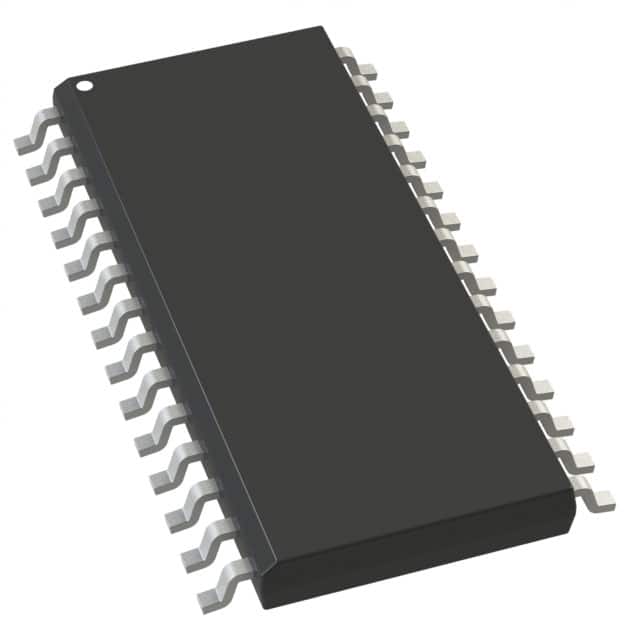

AD5336BRU
IC DAC 10BIT V-OUT 28TSSOPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. AD5336BRU is a 10-bit, quad, voltage-output digital-to-analog converter. This component features a string DAC architecture and a parallel data interface. It offers a buffered voltage output with a typical INL/DNL specification of ±0.5 LSB and ±0.05 LSB respectively. The device operates from an analog and digital supply voltage range of 2.5V to 5.5V and has a settling time of 9µs. The AD5336BRU supports an external voltage reference and is housed in a 28-TSSOP surface-mount package. This component is suitable for applications in industrial automation, medical instrumentation, and consumer electronics.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-TSSOP (0.173"", 4.40mm Width) |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 10 |
| Data Interface | Parallel |
| Reference Type | External |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply, Analog | 2.5V ~ 5.5V |
| Voltage - Supply, Digital | 2.5V ~ 5.5V |
| Settling Time | 9µs |
| Supplier Device Package | 28-TSSOP |
| Architecture | String DAC |
| Number of D/A Converters | 4 |
| INL/DNL (LSB) | ±0.5, ±0.05 |
| Differential Output | No |
| Programmable | Not Verified |
