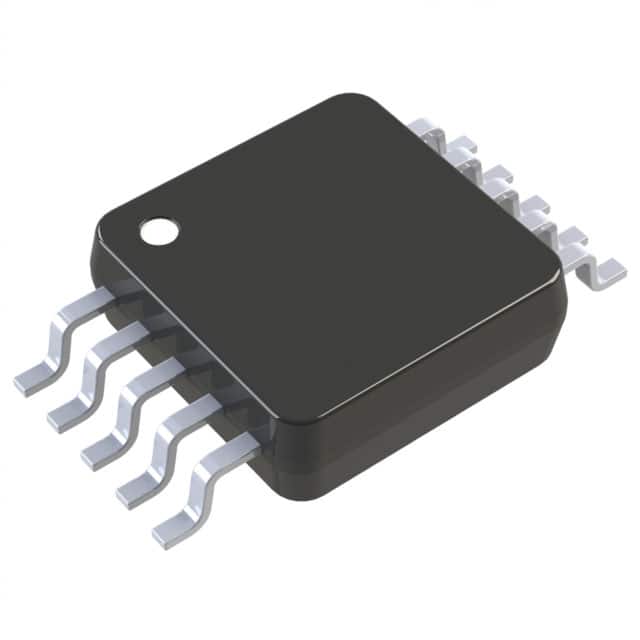

AD5322BRMZ-REEL
IC DAC 12BIT V-OUT 10MSOPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
The Analog Devices Inc. AD5322BRMZ-REEL is a dual 12-bit, voltage-output digital-to-analog converter (DAC) featuring a string DAC architecture. It offers a settling time of 10µs and supports SPI and DSP data interfaces. The device is designed for operation with analog and digital supply voltages ranging from 2.5V to 5.5V. It provides buffered voltage output and requires an external reference. Key specifications include integral nonlinearity (INL) and differential nonlinearity (DNL) of ±2 LSB and ±0.2 LSB, respectively. This component is housed in a 10-MSOP package, supplied on tape and reel, and operates within an ambient temperature range of -40°C to 105°C. Applications for this DAC include industrial automation, medical instrumentation, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-TFSOP, 10-MSOP (0.118"", 3.00mm Width) |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Data Interface | SPI, DSP |
| Reference Type | External |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply, Analog | 2.5V ~ 5.5V |
| Voltage - Supply, Digital | 2.5V ~ 5.5V |
| Settling Time | 10µs |
| Supplier Device Package | 10-MSOP |
| Architecture | String DAC |
| Number of D/A Converters | 2 |
| INL/DNL (LSB) | ±2, ±0.2 |
| Differential Output | No |
| Programmable | Not Verified |
