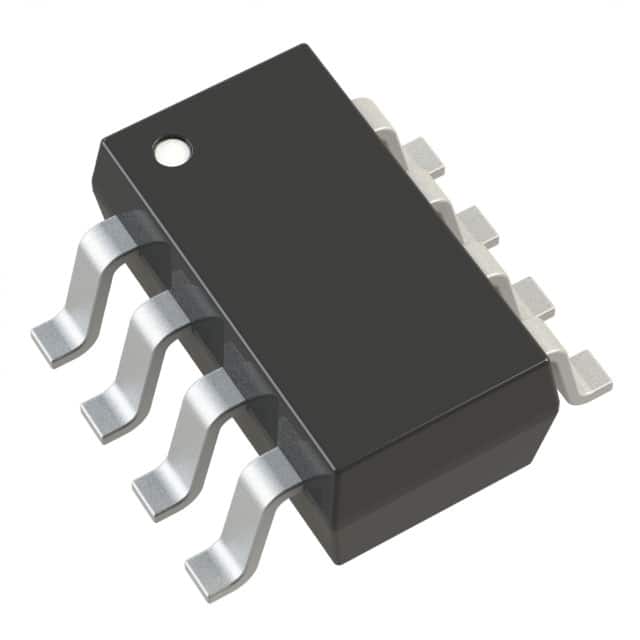

AD5060BRJZ-2REEL7
IC DAC 16BIT V-OUT SOT23-8Manufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. nanoDAC series AD5060BRJZ-2REEL7 is a 16-bit, single-channel, voltage-output digital-to-analog converter. This R-2R architecture device features an SPI and DSP compatible serial interface. It offers a buffered voltage output and requires an external voltage reference. The AD5060BRJZ-2REEL7 boasts a typical settling time of 4µs and exhibits excellent linearity with INL/DNL specifications of ±0.5 LSB. Operating across an analog and digital supply voltage range of 2.7V to 5.5V, it is suitable for applications operating within a -40°C to 85°C temperature range. Packaged in an 8-lead SOT-23, this component is commonly found in industrial automation, instrumentation, and consumer electronics.
Additional Information
Series: nanoDAC®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-23-8 |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Data Interface | SPI, DSP |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Settling Time | 4µs (Typ) |
| Supplier Device Package | SOT-23-8 |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±0.5, ±0.5 |
| Differential Output | No |
| Programmable | Not Verified |
