AD394JD
IC DAC 12BIT V-OUT 28CDIPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
12 Bit Digital to Analog Converter 4 28-CDIP
Additional Information
Series: AD394RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 28-CDIP (0.600"", 15.24mm) |
| Output Type | Voltage - Buffered |
| Mounting Type | Through Hole |
| Number of Bits | 12 |
| Data Interface | Parallel |
| Reference Type | External |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 13.5V ~ 16.5V |
| Voltage - Supply, Digital | 13.5V ~ 16.5V |
| Settling Time | 15µs |
| Supplier Device Package | 28-CDIP |
| Architecture | Multiplying DAC |
| Number of D/A Converters | 4 |
| INL/DNL (LSB) | - |
| Differential Output | No |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

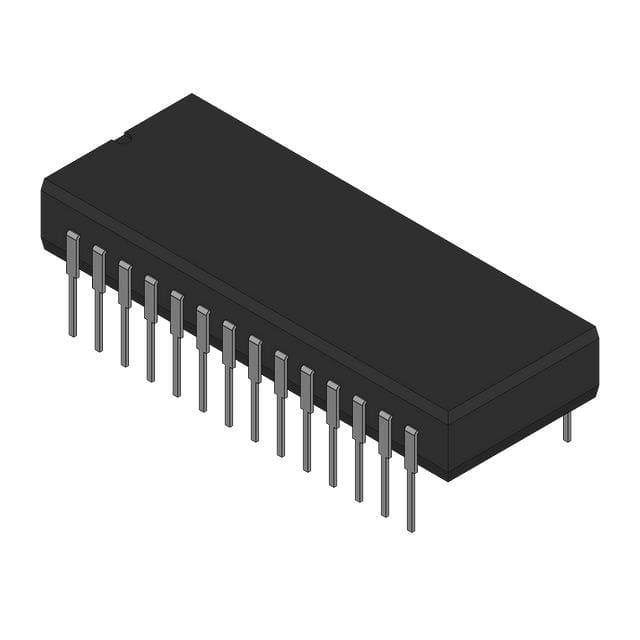

5962-8851001XC
