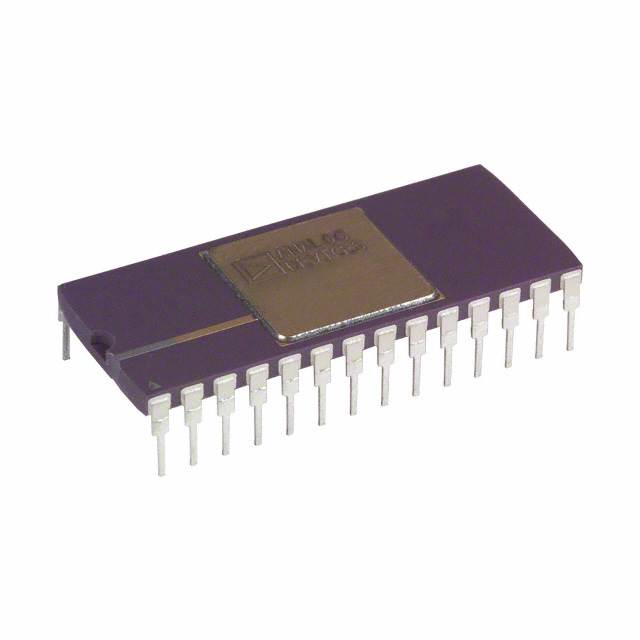

AD390TD/883B
IC DAC 12BIT QUAD 28CDIPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. AD390TD-883B is a 12-bit, quad voltage-output digital-to-analog converter (DAC) housed in a 28-CDIP package. This component features parallel data interface and offers both external and internal reference options. With a ±0.125 LSB INL and ±0.25 LSB DNL, it provides high precision for demanding applications. The buffered voltage output ensures a stable output signal. The AD390TD-883B operates across a wide temperature range of -55°C to 125°C, making it suitable for harsh environments. Typical settling time is 8µs. This device finds application in aerospace and defense systems, industrial control, and test and measurement equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 28-CDIP (0.600"", 15.24mm) |
| Output Type | Voltage - Buffered |
| Mounting Type | Through Hole |
| Number of Bits | 12 |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply, Analog | ±13.5V ~ 16.5V |
| Voltage - Supply, Digital | - |
| Settling Time | 8µs |
| Supplier Device Package | 28-CDIP |
| Architecture | - |
| Number of D/A Converters | 4 |
| INL/DNL (LSB) | ±0.125, ±0.25 |
| Differential Output | No |
| Programmable | Not Verified |
