AD390TD

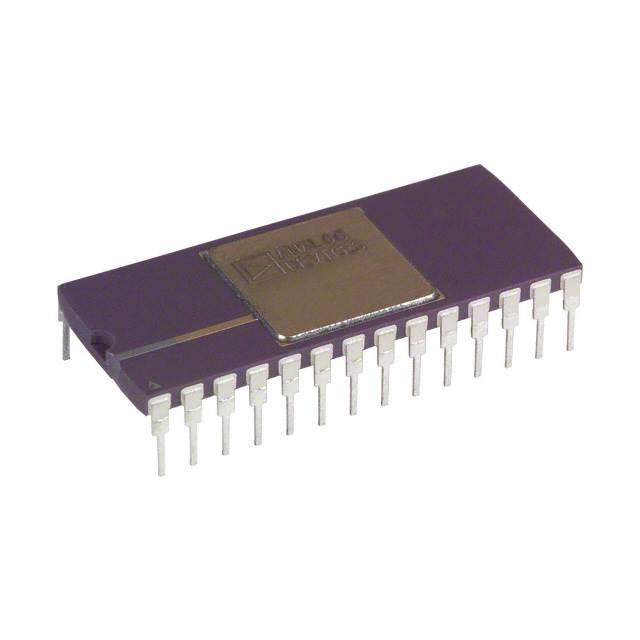

IC DAC 12BIT V-OUT 28CDIPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. AD390TD is a 12-bit, quad-channel digital-to-analog converter. This component features parallel data interface and buffered voltage outputs. The AD390TD offers impressive linearity with INL/DNL specifications of ±0.25 LSB and ±0.5 LSB, respectively. It supports both external and internal voltage references, providing design flexibility. With a settling time of 8µs, it is suitable for applications requiring precise and rapid analog signal generation. The device operates within an analog supply voltage range of ±13.5V to ±16.5V and has an extended operating temperature range of -55°C to 125°C. The AD390TD is packaged in a 28-CDIP, through-hole mounted configuration. This component finds application in industrial control, instrumentation, and high-speed signal processing systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 28-CDIP (0.600"", 15.24mm) |
| Output Type | Voltage - Buffered |
| Mounting Type | Through Hole |
| Number of Bits | 12 |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply, Analog | ±13.5V ~ 16.5V |
| Voltage - Supply, Digital | - |
| Settling Time | 8µs |
| Supplier Device Package | 28-CDIP |
| Architecture | - |
| Number of D/A Converters | 4 |
| INL/DNL (LSB) | ±0.25, ±0.5 |
| Differential Output | No |
| Programmable | Not Verified |
