AD390SD

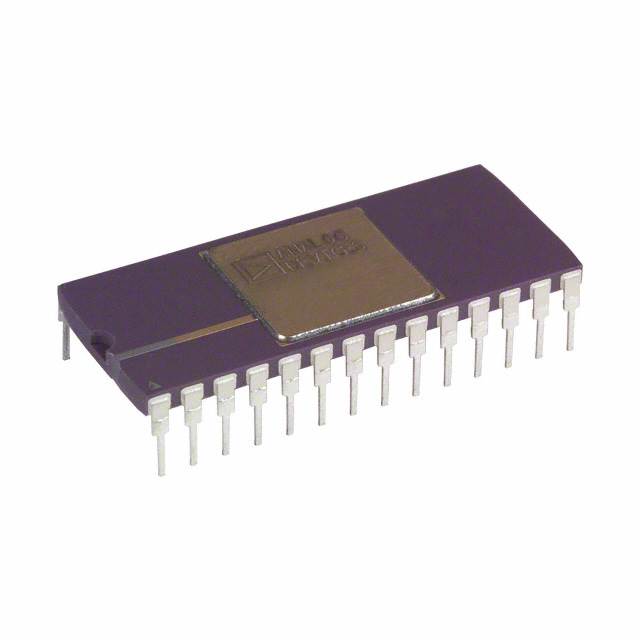

IC DAC 12BIT V-OUT 28CDIPManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. AD390SD is a quad-channel, 12-bit voltage-output digital-to-analog converter (DAC) housed in a 28-CDIP package. This component offers a parallel data interface and a buffered voltage output. The AD390SD features a typical INL/DNL specification of ±0.25 LSB and ±0.5 LSB, respectively. It supports both external and internal voltage references and achieves a settling time of 8µs. Operating across a wide temperature range of -55°C to 125°C, this DAC is suitable for analog supply voltages between ±13.5V and ±16.5V. It finds application in industrial control systems, data acquisition, and precision instrumentation.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 28-CDIP (0.600"", 15.24mm) |
| Output Type | Voltage - Buffered |
| Mounting Type | Through Hole |
| Number of Bits | 12 |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply, Analog | ±13.5V ~ 16.5V |
| Voltage - Supply, Digital | - |
| Settling Time | 8µs |
| Supplier Device Package | 28-CDIP |
| Architecture | - |
| Number of D/A Converters | 4 |
| INL/DNL (LSB) | ±0.25, ±0.5 |
| Differential Output | No |
| Programmable | Not Verified |
