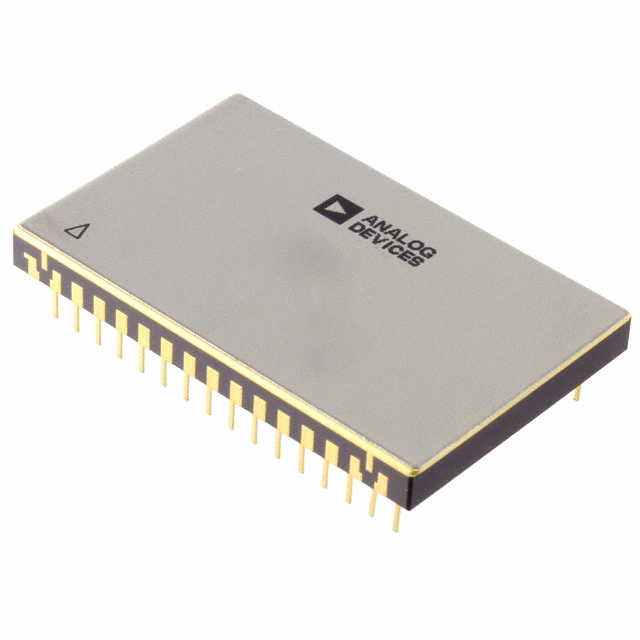

AD1139K
IC DAC 18BIT A-OUT 32BBDIP-HManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc. AD1139K is an 18-bit, single-channel digital-to-analog converter (DAC) housed within a 32-BBDIP-H package. This component features a parallel data interface and an unbuffered current output. With a guaranteed Integral Non-Linearity (INL) and Differential Non-Linearity (DNL) of ±0.5 LSB maximum, the AD1139K is suitable for precision applications. It operates from analog supply voltages of ±15V and 5V, with no specified digital supply voltage. This through-hole mounted device is designed for operating temperatures ranging from 0°C to 70°C. The AD1139K finds application in test and measurement equipment, industrial automation, and audio processing systems requiring high-resolution signal generation.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 32-CDIP (0.910"", 23.12mm) |
| Output Type | Current - Unbuffered |
| Mounting Type | Through Hole |
| Number of Bits | 18 |
| Data Interface | Parallel |
| Reference Type | Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 5V, ±15V |
| Voltage - Supply, Digital | - |
| Settling Time | - |
| Supplier Device Package | 32-BBDIP-H |
| Architecture | - |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±0.5 (Max), ±0.5 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
