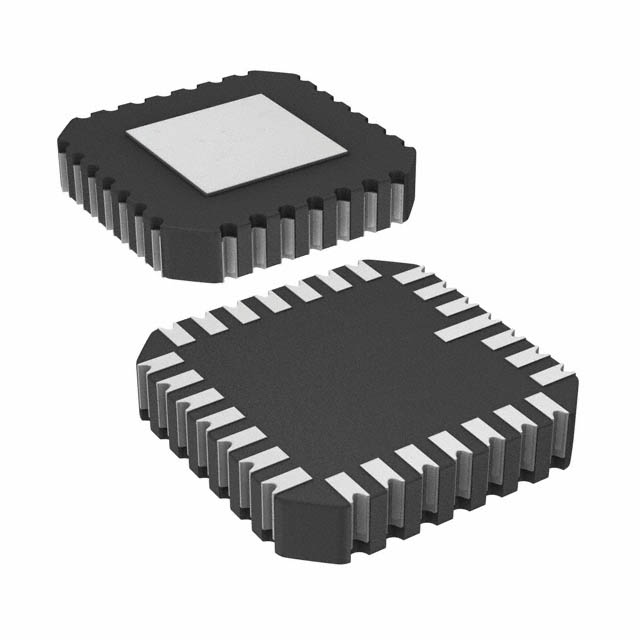

5962-88663023X
IC DAC 8BIT OCTAL 28CLCCManufacturer: Analog Devices Inc.
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
8 Bit Digital to Analog Converter 8 28-LCC (11.43x11.43)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 28-LCC |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 8 |
| Data Interface | Parallel |
| Reference Type | External |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply, Analog | 10.8V ~ 16.5V, -4.5V ~ -5.5V |
| Voltage - Supply, Digital | 13.5V ~ 16.5V |
| Settling Time | 5µs, 7µs |
| Supplier Device Package | 28-LCC (11.43x11.43) |
| Architecture | R-2R |
| Number of D/A Converters | 8 |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
