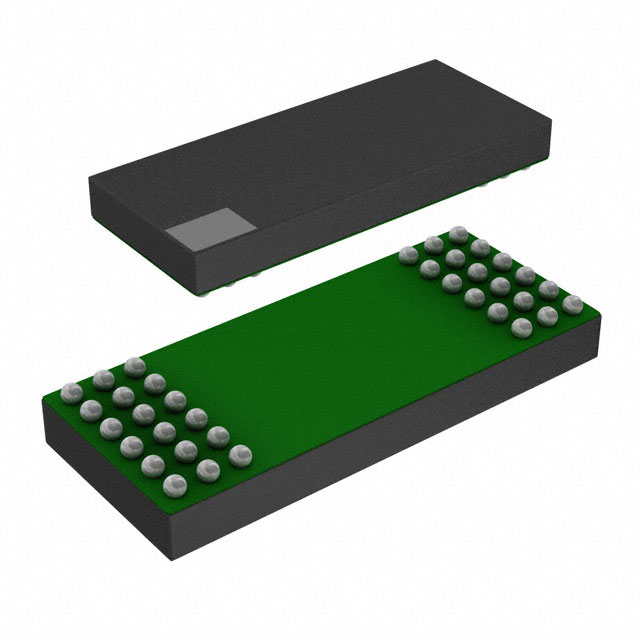

LTM2895HY#PBF
DGTL ISOL 6000VRMS 9CH SPI 36BGAManufacturer: Analog Devices Inc.
Categories: Digital Isolators
Quality Control: Learn More
SPI Digital Isolator 6000Vrms 9 Channel 100Mbps 50kV/µs CMTI 36-BGA
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 36-BGA |
| Mounting Type | Surface Mount |
| Type | SPI |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 3V ~ 5.5V |
| Data Rate | 100Mbps |
| Technology | Magnetic Coupling |
| Voltage - Isolation | 6000Vrms |
| Inputs - Side 1/Side 2 | 8/4 |
| Supplier Device Package | 36-BGA (15x6.25) |
| Rise / Fall Time (Typ) | 10ns, 10ns |
| Common Mode Transient Immunity (Min) | 50kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 150ns, 150ns |
| Isolated Power | No |
| Channel Type | Bidirectional, Unidirectional |
| Pulse Width Distortion (Max) | - |
| Number of Channels | 9 |
