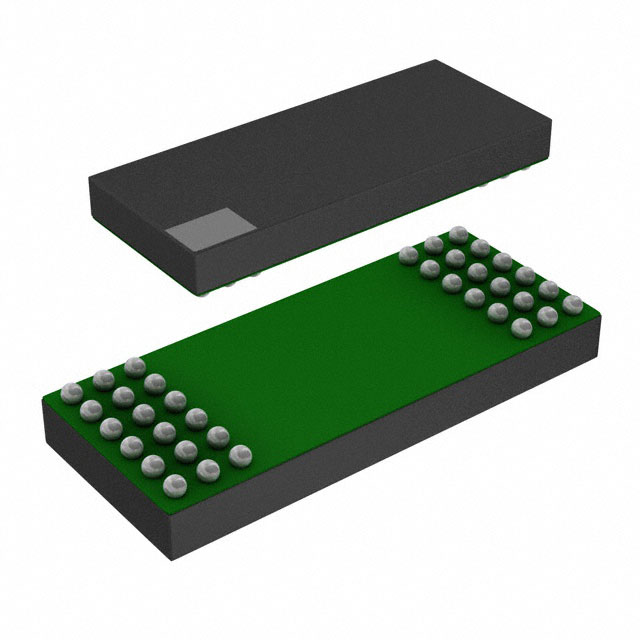

LTM2810CY-I#PBF
DGTL ISOL 7500VRMS 6CH I2C 36BGAManufacturer: Analog Devices Inc.
Categories: Digital Isolators
Quality Control: Learn More
I2C Digital Isolator 7500Vrms 6 Channel 400kHz 50kV/µs CMTI 36-BGA Module
Additional Information
Series: µModule®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 36-BGA Module |
| Mounting Type | Surface Mount |
| Type | I2C |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 3V ~ 5.5V |
| Data Rate | 400kHz |
| Technology | Magnetic Coupling |
| Voltage - Isolation | 7500Vrms |
| Inputs - Side 1/Side 2 | 3/3 |
| Supplier Device Package | 36-BGA (22x6.25) |
| Rise / Fall Time (Typ) | 350ns, 250ns (Max) |
| Common Mode Transient Immunity (Min) | 50kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 500ns, 500ns |
| Isolated Power | Yes |
| Channel Type | Unidirectional |
| Pulse Width Distortion (Max) | 50ns |
| Number of Channels | 6 |
