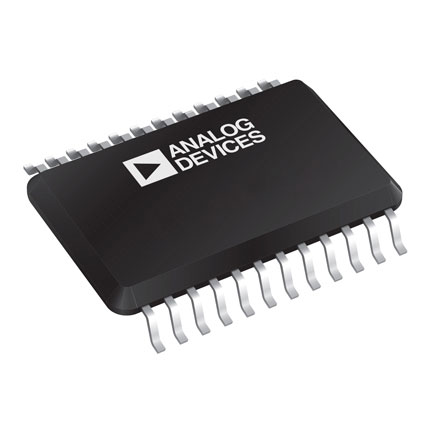

ADUM5411BRSZ-RL7
DGTL ISO 2500VRMS 4CH GP 24SSOPManufacturer: Analog Devices Inc.
Categories: Digital Isolators
Quality Control: Learn More
Analog Devices Inc. ADUM5411BRSZ-RL7 is a 4-channel, general-purpose digital isolator from the iCoupler® series. This device provides 2500Vrms of isolation, leveraging magnetic coupling technology. It supports a data rate of up to 150Mbps and features a high common-mode transient immunity of 75kV/µs. The unidirectional channels offer a 3/1 input configuration. With a propagation delay of 13ns maximum for both tpLH and tpHL, and a maximum pulse width distortion of 3ns, it is suitable for high-speed signaling. Typical rise and fall times are 2.5ns. The ADUM5411BRSZ-RL7 operates within a supply voltage range of 1.7V to 5.5V and has an operating temperature range of -40°C to 105°C. It is supplied in a 24-SSOP package (0.209", 5.30mm width) and is available on tape and reel. This component finds application in industrial automation, medical equipment, and power supplies.
Additional Information
Series: iCoupler®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-SSOP (0.209"", 5.30mm Width) |
| Mounting Type | Surface Mount |
| Type | General Purpose |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply | 1.7V ~ 5.5V |
| Data Rate | 150Mbps |
| Technology | Magnetic Coupling |
| Voltage - Isolation | 2500Vrms |
| Inputs - Side 1/Side 2 | 3/1 |
| Supplier Device Package | 24-SSOP |
| Rise / Fall Time (Typ) | 2.5ns, 2.5ns |
| Common Mode Transient Immunity (Min) | 75kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 13ns, 13ns |
| Isolated Power | Yes |
| Channel Type | Unidirectional |
| Pulse Width Distortion (Max) | 3ns |
| Number of Channels | 4 |
