ADUM1410ARWZ-RL
DGTL ISO 3750VRMS 4CH GP 16SOICManufacturer: Analog Devices Inc.
Categories: Digital Isolators
Quality Control: Learn More
General Purpose Digital Isolator 3750Vrms 4 Channel 1Mbps 25kV/µs CMTI 16-SOIC (0.295"", 7.50mm Width)
Additional Information
Series: iCoupler®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Type | General Purpose |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply | 2.7V ~ 5.5V |
| Data Rate | 1Mbps |
| Technology | Magnetic Coupling |
| Voltage - Isolation | 3750Vrms |
| Inputs - Side 1/Side 2 | 4/0 |
| Supplier Device Package | 16-SOIC |
| Rise / Fall Time (Typ) | 2.5ns, 2.5ns |
| Common Mode Transient Immunity (Min) | 25kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 100ns, 100ns |
| Isolated Power | No |
| Channel Type | Unidirectional |
| Pulse Width Distortion (Max) | 40ns |
| Number of Channels | 4 |
Request a Quote
Clients Also Buy

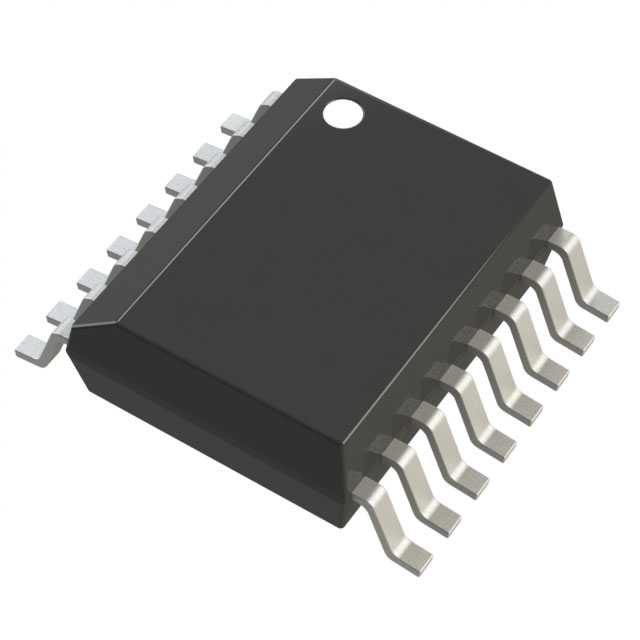

ADUM3190TRQZ-RL7
IC ISOLATOR 16QSOP

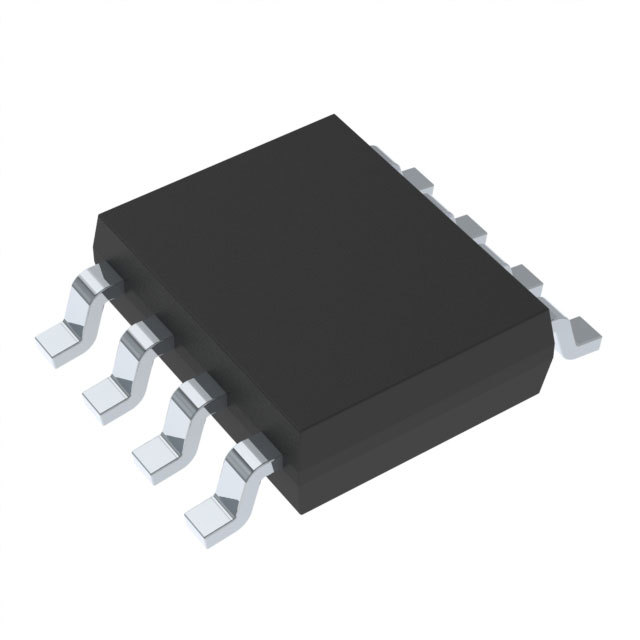

ADM3050EBRIZ-RL
