ADN4624BCPZ-RL
QUAD 2.5GBPS 4+0 LVDS ISOLATORManufacturer: Analog Devices Inc.
Categories: Digital Isolators
Quality Control: Learn More
LVDS Digital Isolator 5700Vrms 4 Channel 2.5Gbps 40kV/µs CMTI 32-WFQFN Exposed Pad, CSP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

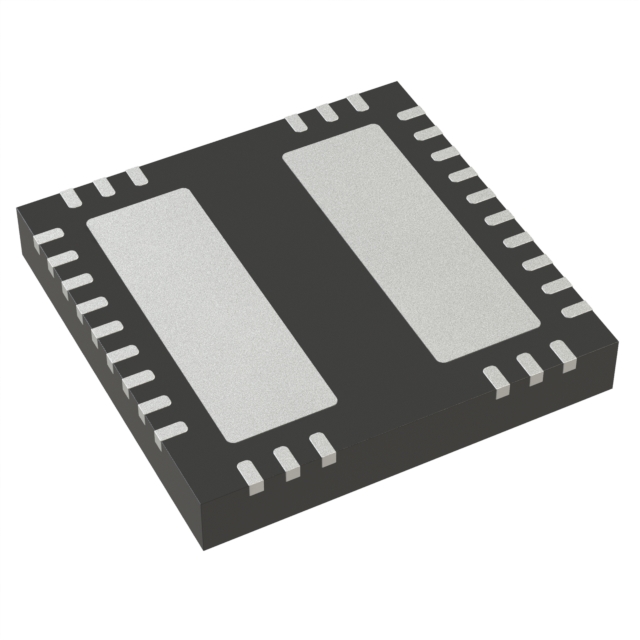

| Package / Case | 32-WFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Type | LVDS |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 1.7V ~ 1.9V |
| Data Rate | 2.5Gbps |
| Technology | Magnetic Coupling |
| Voltage - Isolation | 5700Vrms |
| Inputs - Side 1/Side 2 | 4/0 |
| Supplier Device Package | 32-LFCSP (5x5) |
| Rise / Fall Time (Typ) | 180ps, 180ps (Max) |
| Common Mode Transient Immunity (Min) | 40kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 2.8ns, 2.8ns |
| Isolated Power | No |
| Channel Type | Unidirectional |
| Pulse Width Distortion (Max) | - |
| Number of Channels | 4 |
