HMC856LC5TR-R5
IC DELAY LINE 100PS 32SMDManufacturer: Analog Devices Inc.
Categories: Delay Lines
Quality Control: Learn More

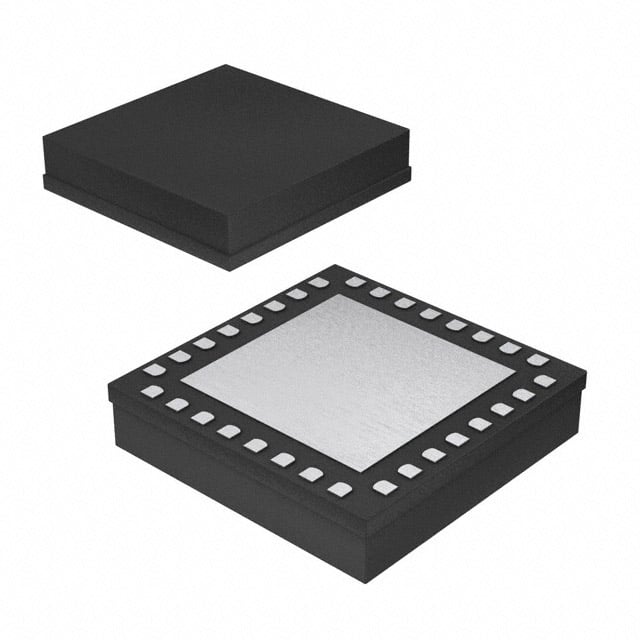

Analog Devices Inc. HMC856LC5TR-R5 is a surface-mount delay line IC with a programmable function. Offering a minimum delay of 100ps, this component features a tap increment of 3 ps, enabling fine-grained delay adjustments. The device operates within a voltage range of -2.9V to -3.7V and is designed for use in applications requiring precise signal timing. It is housed in a 32-TFCQFN exposed pad package, also referred to as 32-CLCC (5x5) by the supplier, and is supplied on tape and reel for automated assembly. The operating temperature range is -40°C to 85°C. This component finds utility in high-speed digital systems and RF applications where accurate delay control is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-TFCQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Function | Programmable |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | -2.9V ~ -3.7V |
| Delay to 1st Tap | - |
| Number of Independent Delays | 1 |
| Available Total Delays | 100ps |
| Tap Increment | 3 ps |
| Supplier Device Package | 32-CLCC (5x5) |
