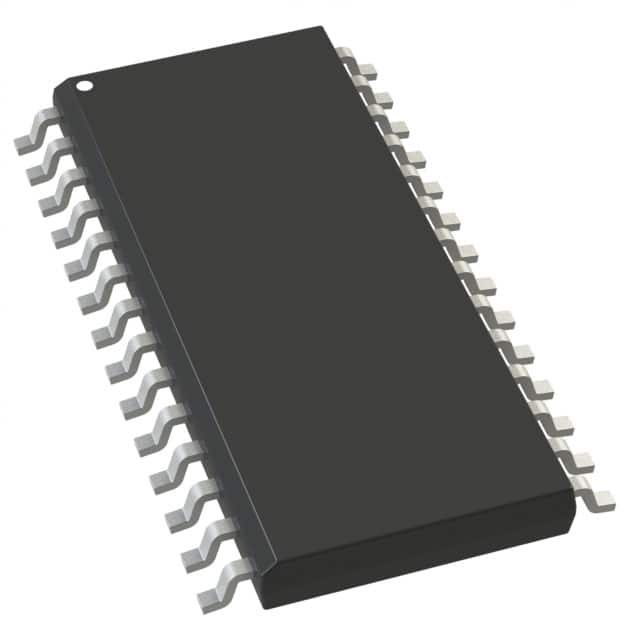

LTC3633AIFE-1#TRPBF
IC REG BUCK ADJ 3A DL 28TSSOPManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Analog Devices Inc. LTC3633AIFE-1-TRPBF is a dual, synchronous, step-down switching regulator designed for high-efficiency power conversion. This device offers two independently adjustable outputs, each capable of delivering up to 3A. With an input voltage range from 3.6V to 20V, it is suitable for a wide array of applications. The output voltage is adjustable from 1.5V up to 12V, providing flexibility for various system requirements.
Featuring a wide switching frequency range from 500kHz to 4MHz, the LTC3633AIFE-1-TRPBF allows for optimization of component size and efficiency. The integrated synchronous rectifier eliminates the need for external Schottky diodes, further reducing component count and improving efficiency. This component is housed in a 28-TSSOP (0.173", 4.40mm Width) Exposed Pad package, ensuring robust thermal performance. Its operating temperature range of -40°C to 125°C (TJ) makes it well-suited for demanding industrial and automotive environments. The LTC3633AIFE-1-TRPBF is supplied on a tape and reel for automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-TSSOP (0.173"", 4.40mm Width) Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Function | Step-Down |
| Current - Output | 3A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 500kHz ~ 4MHz |
| Voltage - Input (Max) | 20V |
| Topology | Buck |
| Supplier Device Package | 28-TSSOP-EP |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 12V |
| Voltage - Input (Min) | 3.6V |
| Voltage - Output (Min/Fixed) | 1.5V |
