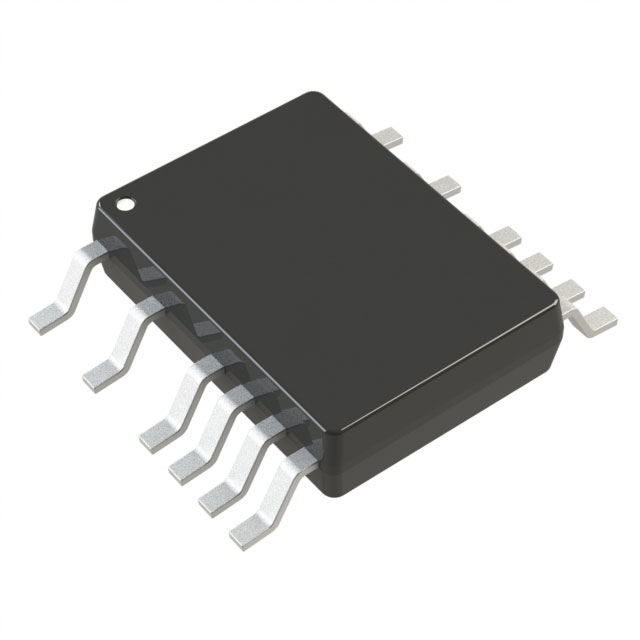

LTC3630AIMSE#TRPBF
IC REG BUCK ADJ 500MA 16MSOPManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
Buck Switching Regulator IC Positive or Negative Adjustable (Programmable) 0.8V (1.8V, 3.3V, 5V) 1 Output 500mA 16-TFSOP (0.118"", 3.00mm Width), 12 Leads, Exposed Pad
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-TFSOP (0.118"", 3.00mm Width), 12 Leads, Exposed Pad |
| Output Type | Adjustable (Programmable) |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 500mA |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive or Negative |
| Frequency - Switching | - |
| Voltage - Input (Max) | 76V |
| Topology | Buck |
| Supplier Device Package | 16-MSOP-EP |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 76V |
| Voltage - Input (Min) | 4V |
| Voltage - Output (Min/Fixed) | 0.8V (1.8V, 3.3V, 5V) |
Request a Quote
