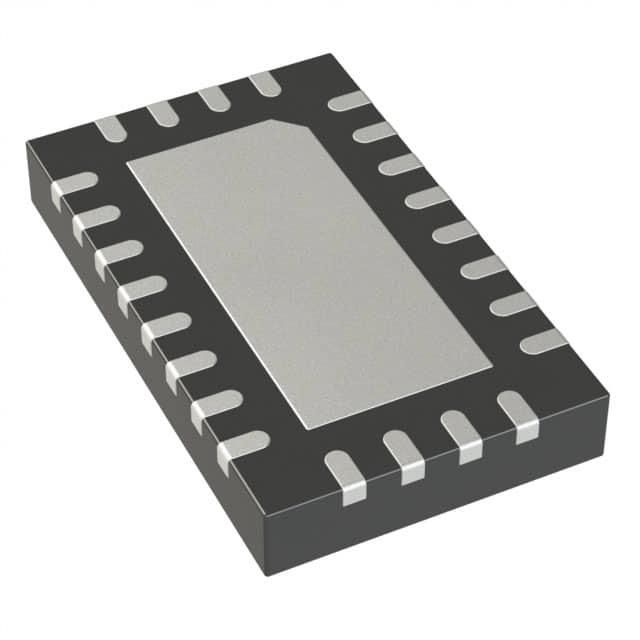

LTC3623EUDD#TRPBF
IC REG BUCK ADJ 5A 24QFNManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Analog Devices Inc. LTC3623EUDD-TRPBF is a high-efficiency, synchronous step-down switching regulator. This component provides a positive adjustable output voltage from 0V up to 14.5V, capable of delivering up to 5A of output current. Operating within a wide input voltage range of 1.5V to 15V, the LTC3623EUDD-TRPBF features a programmable switching frequency from 400kHz to 4MHz, allowing for optimization of efficiency and component size. Its internal synchronous rectifier enhances efficiency, eliminating the need for an external Schottky diode. The device is supplied in a compact 24-QFN (3x5) package with an exposed pad, suitable for surface mounting. Operating temperatures range from -40°C to 125°C (TJ). This regulator is designed for applications requiring high current density and efficient power conversion, commonly found in telecommunications, data processing, and industrial systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-WFQFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 5A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 400kHz ~ 4MHz |
| Voltage - Input (Max) | 15V |
| Topology | Buck |
| Supplier Device Package | 24-QFN (3x5) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 14.5V |
| Voltage - Input (Min) | 1.5V |
| Voltage - Output (Min/Fixed) | 0V |
