LTC3623EUDD#PBF
IC REG BUCK ADJ 5A 24QFNManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Analog Devices Inc. LTC3623EUDD-PBF is an adjustable, high-efficiency buck switching regulator designed for demanding power conversion applications. This component features a 5A output current capability and operates over an input voltage range of 1.5V to 15V, with a maximum output voltage of 14.5V. Its output is adjustable from 0V, providing significant design flexibility.
The LTC3623EUDD-PBF utilizes a synchronous buck topology, enhancing efficiency and reducing the need for external components. It offers a wide switching frequency range, from 400kHz to 4MHz, allowing optimization for transient response and component size. The device is housed in a compact 24-WFQFN exposed pad package, suitable for surface mount assembly. Operating temperature ranges from -40°C to 125°C, making it suitable for use in industrial and automotive environments. The inclusion of a Power Good (PG) output further aids in system monitoring.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |

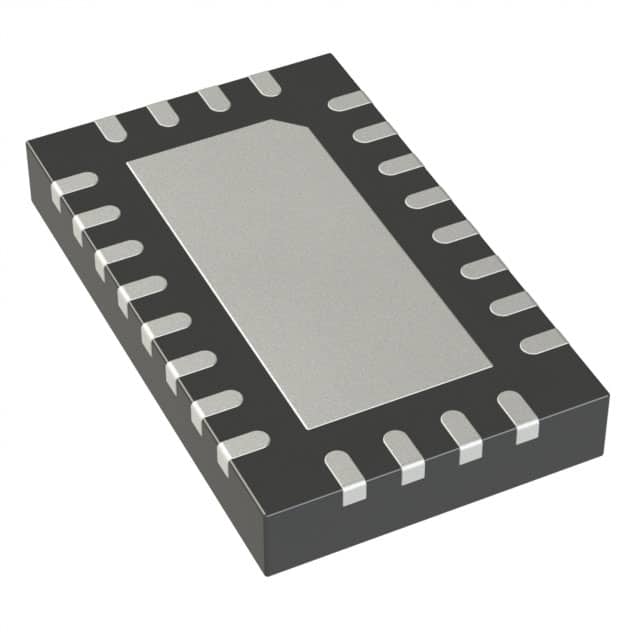

| Package / Case | 24-WFQFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 5A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 400kHz ~ 4MHz |
| Voltage - Input (Max) | 15V |
| Topology | Buck |
| Supplier Device Package | 24-QFN (3x5) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 14.5V |
| Voltage - Input (Min) | 1.5V |
| Voltage - Output (Min/Fixed) | 0V |
Request a Quote
