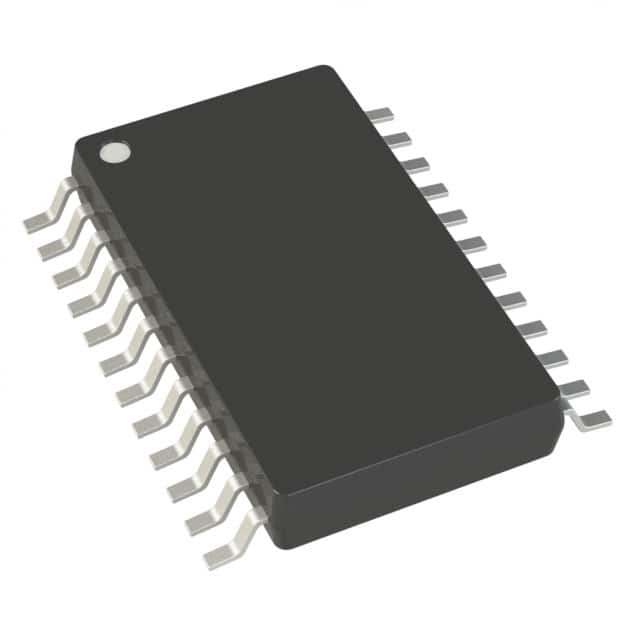

LTC3615HFE#TRPBF
IC REG BUCK ADJ 3A DL 24TSSOPManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Analog Devices Inc. LTC3615HFE-TRPBF is a dual output adjustable buck switching regulator. This component offers two independent step-down converters, each capable of delivering up to 3A of output current. The output voltage is adjustable from 0.6V up to 5.5V, with a maximum input voltage of 5.5V and a minimum input of 2.25V. It features a wide switching frequency range from 400kHz to 4MHz, allowing for optimization of efficiency and component size. The device incorporates synchronous rectification for improved efficiency. Its 24-TSSOP (0.173", 4.40mm Width) Exposed Pad package is designed for surface mounting. The operating temperature range is -55°C to 150°C (TJ). This regulator is suitable for applications in high-performance computing, telecommunications, and industrial systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-TSSOP (0.173"", 4.40mm Width) Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Function | Step-Down |
| Current - Output | 3A |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 400kHz ~ 4MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck |
| Supplier Device Package | 24-TSSOP |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 5.5V |
| Voltage - Input (Min) | 2.25V |
| Voltage - Output (Min/Fixed) | 0.6V |
