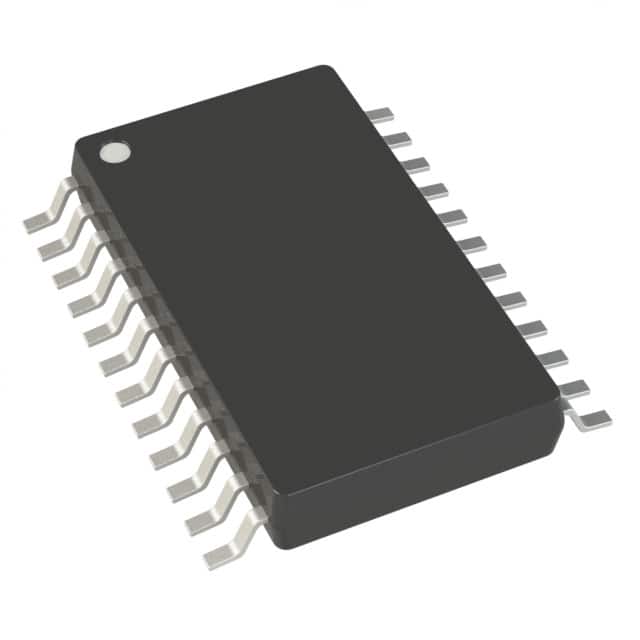

LTC3615HFE-1#TRPBF
IC REG BUCK ADJ 3A DL 24TSSOPManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Analog Devices Inc. LTC3615HFE-1-TRPBF is a dual, 2-output, 3A step-down switching regulator. This surface-mount component operates with an input voltage range of 2.25V to 5.5V, delivering adjustable positive output voltages from 0.6V up to the input voltage. Featuring a high switching frequency adjustable from 400kHz to 4MHz, it enables the use of small external components. The regulator includes synchronous rectification for high efficiency and is housed in a 24-TSSOP (0.173", 4.40mm Width) Exposed Pad package, supplied on tape and reel. Its wide operating temperature range of -55°C to 150°C (TJ) and high output current capability of 3A per channel make it suitable for demanding applications in the telecommunications, industrial, and automotive sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-TSSOP (0.173"", 4.40mm Width) Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Function | Step-Down |
| Current - Output | 3A |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 400kHz ~ 4MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck |
| Supplier Device Package | 24-TSSOP |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 5.5V |
| Voltage - Input (Min) | 2.25V |
| Voltage - Output (Min/Fixed) | 0.6V |
