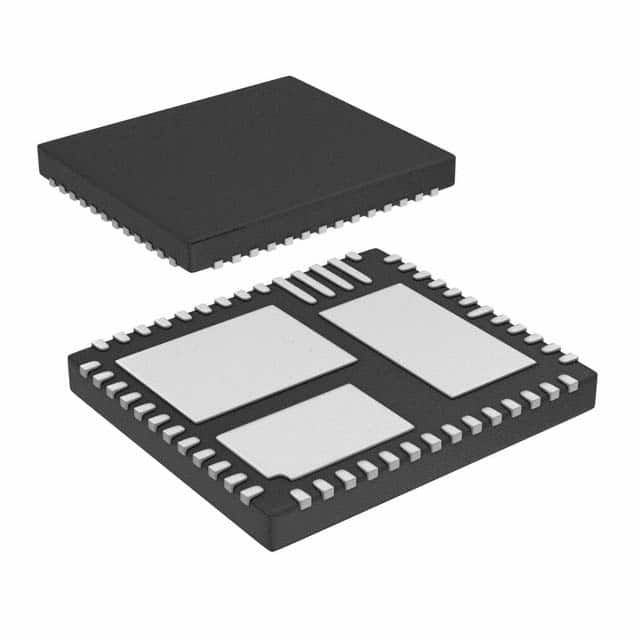

LTC3609IWKG#TRPBF
IC REG BUCK ADJUSTABLE 6A 52QFNManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
Analog Devices Inc. LTC3609IWKG-TRPBF is a high-efficiency, monolithic synchronous buck switching regulator. This component delivers a continuous output current of 6A with an input voltage range of 4V to 32V. The output voltage is precisely adjustable from 0.6V up to 32V, enabling flexibility across a wide spectrum of applications. Designed for surface mounting, it utilizes a 52-VFQFN Exposed Pad package, facilitating robust thermal management. The LTC3609IWKG-TRPBF operates efficiently with a switching frequency that is not specified, and it features a single positive output configuration. Its robust design makes it suitable for demanding applications in the industrial, automotive, and telecommunications sectors. The component is supplied in a tape and reel package for high-volume automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 52-VFQFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 6A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | - |
| Voltage - Input (Max) | 32V |
| Topology | Buck |
| Supplier Device Package | 52-QFN-Multipad (7x8) |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 32V |
| Voltage - Input (Min) | 4V |
| Voltage - Output (Min/Fixed) | 0.6V |
Request a Quote
