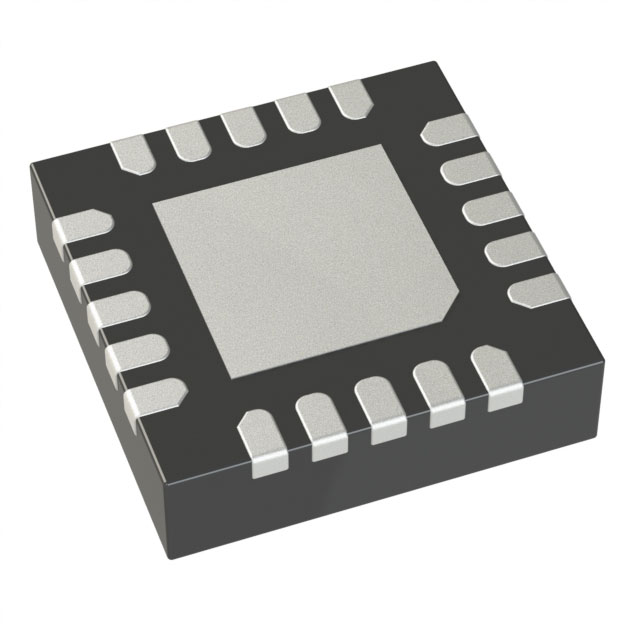

LTC3562EUD#PBF
IC REG BUCK ADJ QUAD 20QFNManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
Buck Switching Regulator IC Positive Adjustable (Programmable) 0.425V (0.6V) 4 Output 400mA, 600mA 20-WFQFN Exposed Pad
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-WFQFN Exposed Pad |
| Output Type | Adjustable (Programmable) |
| Mounting Type | Surface Mount |
| Number of Outputs | 4 |
| Function | Step-Down |
| Current - Output | 400mA, 600mA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 2.25MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck |
| Supplier Device Package | 20-QFN (3x3) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 0.8V (3.78V) |
| Voltage - Input (Min) | 2.7V |
| Voltage - Output (Min/Fixed) | 0.425V (0.6V) |
