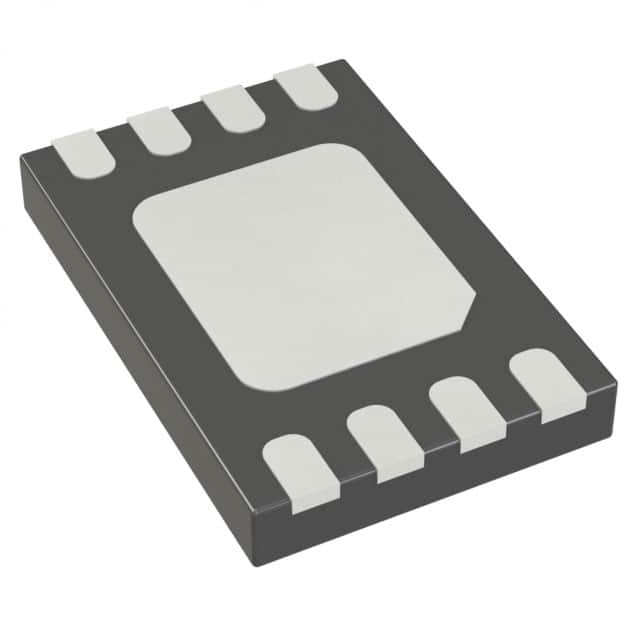

LTC3539EDCB#TRMPBF
IC REG BOOST ADJ 2A 8DFNManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
Analog Devices Inc. LTC3539EDCB-TRMPBF is a high-efficiency, 1MHz, synchronous boost switching regulator. This component is designed for step-up voltage conversion, featuring an adjustable output voltage ranging from 1.5V to 5.25V. With a maximum switch current of 2A, it is capable of delivering up to 2A of output current. The device operates from an input voltage range of 0.5V to 5V. Its 8-WFDFN exposed pad package facilitates efficient surface mounting. The LTC3539EDCB-TRMPBF utilizes a boost topology with synchronous rectification for improved efficiency. This regulator is suitable for applications in portable electronics, battery-powered devices, and other systems requiring compact and efficient power conversion. It operates within an ambient temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-WFDFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Up |
| Current - Output | 2A (Switch) |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 1MHz |
| Voltage - Input (Max) | 5V |
| Topology | Boost |
| Supplier Device Package | 8-DFN (2x3) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 5.25V |
| Voltage - Input (Min) | 0.5V |
| Voltage - Output (Min/Fixed) | 1.5V |
