LTC3539EDCB-2#TRPBF
IC REG BOOST ADJ 2A 8DFNManufacturer: Analog Devices Inc.
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Analog Devices Inc. LTC3539EDCB-2-TRPBF is a high-efficiency, 2MHz synchronous boost switching regulator. Designed for step-up voltage conversion, this component features an adjustable positive output voltage ranging from 1.5V to 5.25V. It can deliver up to 2A of switch current, with input voltage capabilities from 0.5V to 5V. The LTC3539EDCB-2-TRPBF utilizes a boost topology and includes a synchronous rectifier for enhanced efficiency. Its compact 8-DFN (2x3) package with an exposed pad, suitable for surface mounting, makes it ideal for space-constrained applications. This regulator operates within a temperature range of -40°C to 85°C and is supplied on tape and reel. It finds application in portable electronics, battery-powered devices, and power management solutions.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

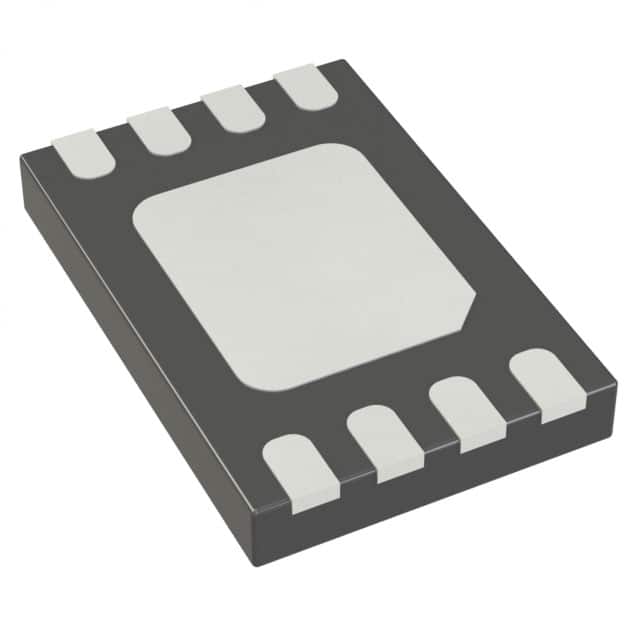

| Package / Case | 8-WFDFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Up |
| Current - Output | 2A (Switch) |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 2MHz |
| Voltage - Input (Max) | 5V |
| Topology | Boost |
| Supplier Device Package | 8-DFN (2x3) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 5.25V |
| Voltage - Input (Min) | 0.5V |
| Voltage - Output (Min/Fixed) | 1.5V |
